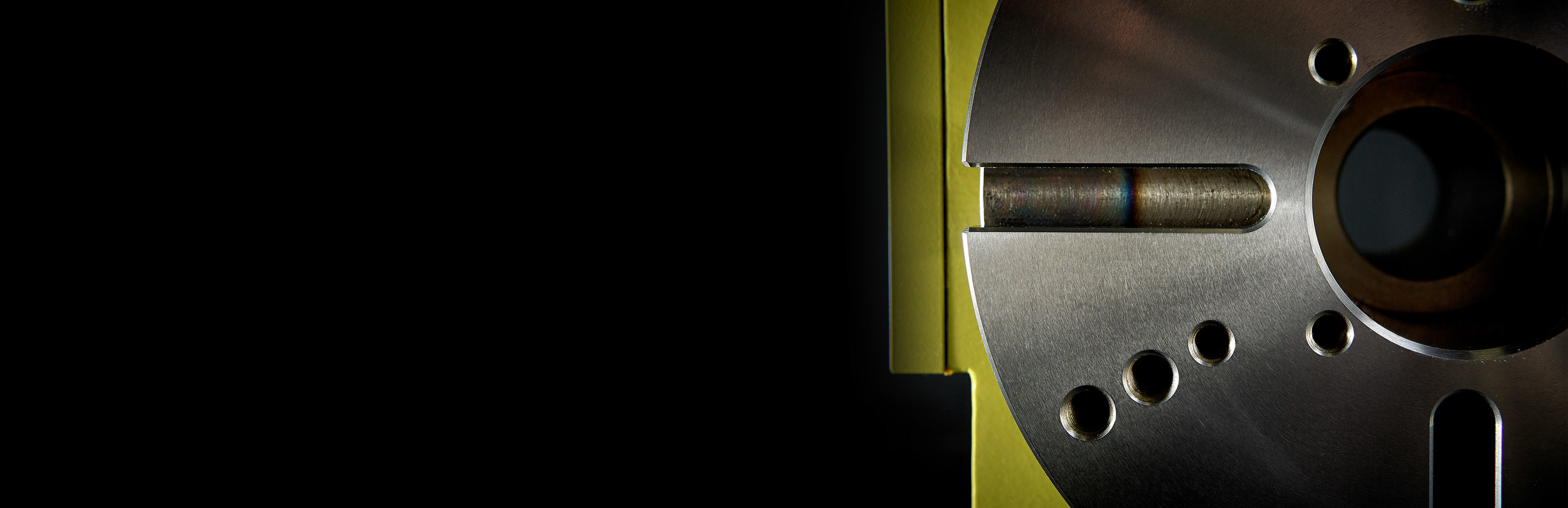

The CNC260PLUS is NIKKEN’s latest Rotary Table with a completely reimagined and updated clamping system.

This new internal design takes better advantage of standard pneumatic supplies, enabling various applications to be machined without the need of an additional hydraulic power pack.

This table is commonly used on a wide range of vertical machining centres to provide 4th axis capabilities at a minimal outlay whilst providing optimum NIKKEN reliability, making it a very sustainable investment.

The brake system can generate a clamping torque of 1430Nm, which is 2.4 x more powerful than the original CNC260 (1430Nm is achieved from a 5 Bar air supply with 1550Nm being possible from a typical 6 Bar workshop supply)!

The CNC260PLUS makes a great solution to maximise the use of your machining centre and can be mounted vertically or horizontally, to suit any application.

CNC260P Rotary Table

Nikken CNC Rotary Tables

(PDF - 21.4 MB)

CNC(Z)260P
Face Plate Diameter[Ømm] 260
Table Range/Type STANDARD
Standard Motor Orientation (Left Hand Option Available for Right Hand Tables) RIGHT
Diameter of Spindle Hole [Ømm H7] 80
Number of Spindles x Pitch [mm] 1
Centre Height [mm] 170
Width of T-Slot [mm] 12
Clamping System PNEUMATIC
Clamping Torque [Nm] 1430
Table Inertia at Motor Shaft [Kg m2 x 103] 0.33
Servo Motor [min1] αiF4·3000
Min. Increment [Degrees] 0.001
Rotation Speed [min1] 25.0
Total Reduction Ratio 1/120
Indexing Accuracy [sec] 20
Indexing Accuracy Ultra Precision [sec] N/A
Net Weight [Kg] 115
Max. Vertical Work Load on Table [Kg] 175
Max. Horizontal Work Load on Table [Kg] 350
Driving Torque [Nm] 192
