Offering unrivalled accuracy and longevity, the CNC1600 is ideal for indexing and lead cutting of large workpieces.

NIKKEN'S largest rotary table, designed with aircraft and energy-related parts in mind, has a tooth thickness module of 10, powerful clamping system and ultra-high rigidity, making it among the best of its kind. Manufactured with high durability materials, the CNC1600 is designed to maintain high accuracy for the long term with minimal maintenance. This versatile Rotary Table is also available with left and right-hand motors.

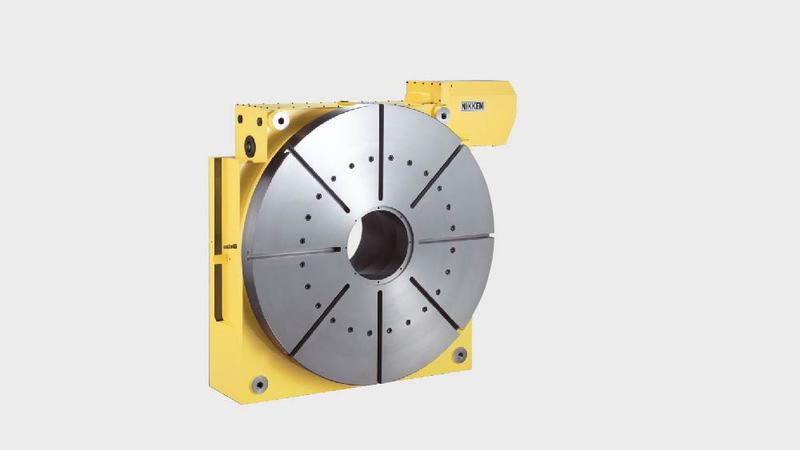

CNC1600 Rotary Table

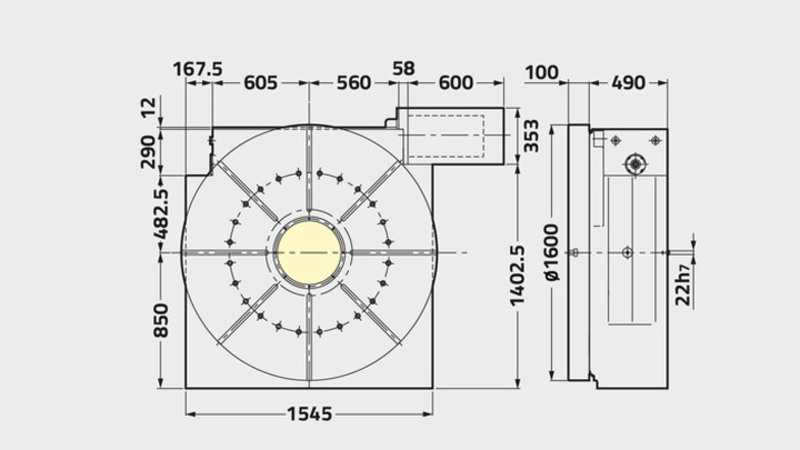

CNC1600 Rotary Table Technical Diagram

Nikken Rotary Table Catalogue – 2019

(PDF - 62.5 MB)

CNC1600
Face Plate Diameter[Ømm] 1600
Table Range/Type EXTRA LARGE
Standard Motor Orientation (Left Hand Option Available for Right Hand Tables) RIGHT
Diameter of Spindle Hole [Ømm H7] 400
Number of Spindles x Pitch [mm] 1
Centre Height [mm] 850
Width of T-Slot [mm] 28 (Optional)
Clamping System HYD
Clamping Torque [Nm] 35000
Table Inertia at Motor Shaft [Kg m2 x 103] N/A
Servo Motor [min1] αiF30·2000
Min. Increment [Degrees] 0.001
Rotation Speed [min1] 2.7
Total Reduction Ratio 1/720
Indexing Accuracy [sec] 15
Indexing Accuracy Ultra Precision [sec] ±3
Net Weight [Kg] 5250
Max. Vertical Work Load on Table [Kg] 10000
Max. Horizontal Work Load on Table [Kg] 30000
Max. Horizontal Thrust Load on the Table [N] 2000000
Strength of Worm Wheel Without Brake (Against Dynamic Cutting Thrust) [FxL Nm] 111952
Max. Thrust Load on the Table [FxL Nm] 510000
Guideline of Max. Unbalancing Load (Vertical with Support) [Nm] N/A
Max. Work Inertia [Kg m2] 6400
Driving Torque [Nm] 8640
