Providing accuracy which is second to none, the CNC1200 is one of our most versatile rotary tables yet.
Manufactured using high durability materials, featuring a tooth thickness module of 10, powerful clamping system and ultra-high rigidity the CNC1200 is designed to maintain precision for the long term. Designed for use within the aerospace and energy-related industries, the CNC1200 is ideal for indexing and lead cutting of large workpieces.
![CNC1200 Rotary Table](/rails/active_storage/representations/eyJfcmFpbHMiOnsibWVzc2FnZSI6IkJBaHBBbmdGIiwiZXhwIjpudWxsLCJwdXIiOiJibG9iX2lkIn19--6cd4a2040eeaf7a4fe0d9b1e1b40b6ef23d65eb0/eyJfcmFpbHMiOnsibWVzc2FnZSI6IkJBaDdCam9VWTI5dFltbHVaVjl2Y0hScGIyNXpld2s2RUdGMWRHOWZiM0pwWlc1MFZEb01aM0poZG1sMGVVa2lDMk5sYm5SbGNnWTZCa1ZVT2d0eVpYTnBlbVZKSWcwNE1EQjRORFV3WGdZN0NGUTZDV055YjNCSkloQTRNREI0TkRVd0t6QXJNQVk3Q0ZRPSIsImV4cCI6bnVsbCwicHVyIjoidmFyaWF0aW9uIn19--504807c00c81bc60c54f8203f5b100694120b648/CNC1200.jpg)

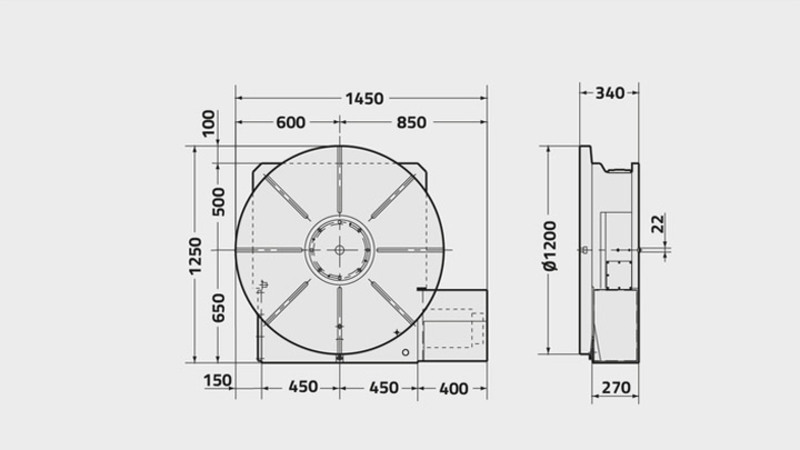

![CNC1200 Rotary Table Technical Diagram](/rails/active_storage/representations/eyJfcmFpbHMiOnsibWVzc2FnZSI6IkJBaHBBa3NHIiwiZXhwIjpudWxsLCJwdXIiOiJibG9iX2lkIn19--2be7343979b347d0d9be7044e0950292a11fb5b8/eyJfcmFpbHMiOnsibWVzc2FnZSI6IkJBaDdCam9VWTI5dFltbHVaVjl2Y0hScGIyNXpld2s2RUdGMWRHOWZiM0pwWlc1MFZEb01aM0poZG1sMGVVa2lDMk5sYm5SbGNnWTZCa1ZVT2d0eVpYTnBlbVZKSWcwNE1EQjRORFV3WGdZN0NGUTZDV055YjNCSkloQTRNREI0TkRVd0t6QXJNQVk3Q0ZRPSIsImV4cCI6bnVsbCwicHVyIjoidmFyaWF0aW9uIn19--504807c00c81bc60c54f8203f5b100694120b648/1200.jpg)
Nikken Rotary Table Catalogue – 2019
(PDF - 62.5 MB)
CNC1200 | |
---|---|
Face Plate Diameter[Ømm] | 1200 |
Table Range/Type | EXTRA LARGE |
Standard Motor Orientation (Left Hand Option Available for Right Hand Tables) | RIGHT |
Diameter of Spindle Hole [Ømm H7] | 300 |
Number of Spindles x Pitch [mm] | 1 |
Centre Height [mm] | Horizontal Only |
Width of T-Slot [mm] | 22 (Optional) |
Clamping System | HYD |
Clamping Torque [Nm] | 18000 |
Table Inertia at Motor Shaft [Kg m2 x 103] | N/A |
Servo Motor [min1] | αiF22·2000 |
Min. Increment [Degrees] | 0.001 |
Rotation Speed [min1] | 5.5 |
Total Reduction Ratio | 1/360 |
Indexing Accuracy [sec] | 15 |
Indexing Accuracy Ultra Precision [sec] | ±3 |
Net Weight [Kg] | 1850 |
Max. Vertical Work Load on Table [Kg] | N/A |
Max. Horizontal Work Load on Table [Kg] | 7000 |
Max. Horizontal Thrust Load on the Table [N] | 375000 |
Strength of Worm Wheel Without Brake (Against Dynamic Cutting Thrust) [FxL Nm] | 24080 |
Max. Thrust Load on the Table [FxL Nm] | 67500 |
Guideline of Max. Unbalancing Load (Vertical with Support) [Nm] | N/A |
Max. Work Inertia [Kg m2] | 1300 |
Driving Torque [Nm] | 3168 |
