5AX-DD201BF3-HSR

NIKKEN PROPOSE HYBRID MACHINING WITH TURNING FUNCTION FOR BT30 MACHINE!

NIKKEN continue to innovate with hybrid machining and new turning function for BT30 machine, benefitting our customers consistently and making machining easier!

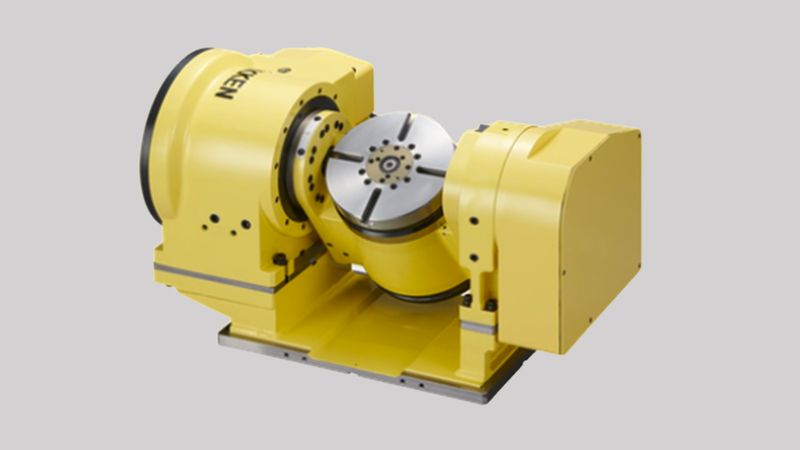

NIKKEN's new Direct Drive HSR Rotary Table has a built-in direct drive motor achieving high speed rotatipn of 1500r/min for Rotary Axis! With a patented core cooling of the Rotary spindle, which can suppress temperature rise during continous cutting operations.

Plus a built-in special 3 port Rotary joint!

Nikken Rotary Table Catalogue

(PDF - 21.4 MB)

	5AX-DD201BF3-HSR
Face Plate Diameter[Ømm]	200
Centre Height [mm]	280
Centre Height in Horizontal [mm]	306
Width of T Slot [mm*1]	12H7
AXIS	Rotary	Tilting
Clamping System	PNEUMATIC	PNEUMATIC
Clamping Torque [Nm]	150	500
Motor [with brake]	DiS60/1500-B	DiS180/800-B
Min. Increment [Degrees]	0.001	0.001
Rotation Speed [min-1*2]	1500	150
Indexing Accuracy [sec]	±10	±15
Max. Torque [Nm]	140	380
Necessary Cooling Capacity [W]	1200	1600
Stationary Torque [Nm]	60*2	75/180*3
Net Weight [Kg]	240

*1 Built-in A,B,C ports + drain ports. The A,B ports are hydraulic only and collect oil from drain port. Oil must be returned to hydraulic tank. C port is pneumatic only.

*2 The motor of the rotary spindle is a dedicated motor with core cooling. A suitable external cooling device is required. Cooling oil choice may also be restricted by the choice of cooling device (chiller). When cooling device is active please constantly monitor its condition to ensure proper cooling is maintained – ideally the system should be designed/integrated to stop the machine and rotary table with alarm/Estop should something fail.

*3 This value is when the table body is cooled with cooling oil.
