NIKKEN Direct Drive Rotary Tables are simple and accurate. Direct Drive tables feature no mechanical reduction mechanism such as the worm system within a standard rotary table.

Direct Drive Rotary Tables have the motor effectively ‘built-in’ to the rotary table body directly driving the axes and faceplate.

The tables provide extremely high rotation speeds with high acceleration and deceleration. The only limit is the driving torque of the motor! The application needs to be considered but NIKKEN Direct Drive Rotary Tables are suitable for numerous applications where complicated forms and shapes can be machined effectively and quickly.

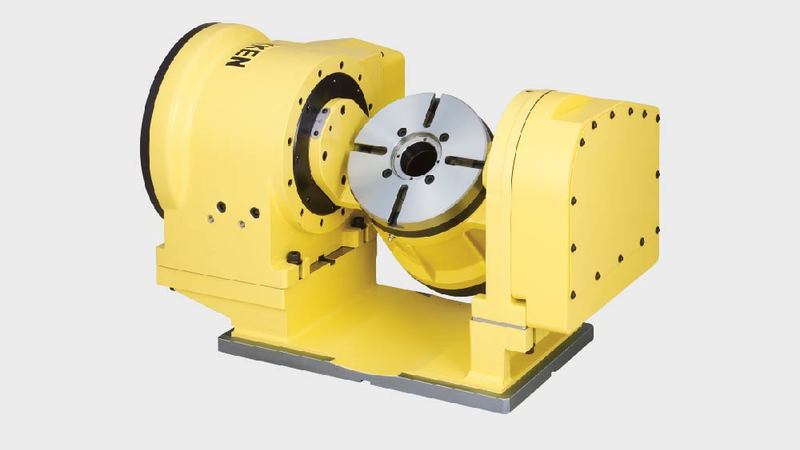

5AX-DD200BF2 Rotary Table

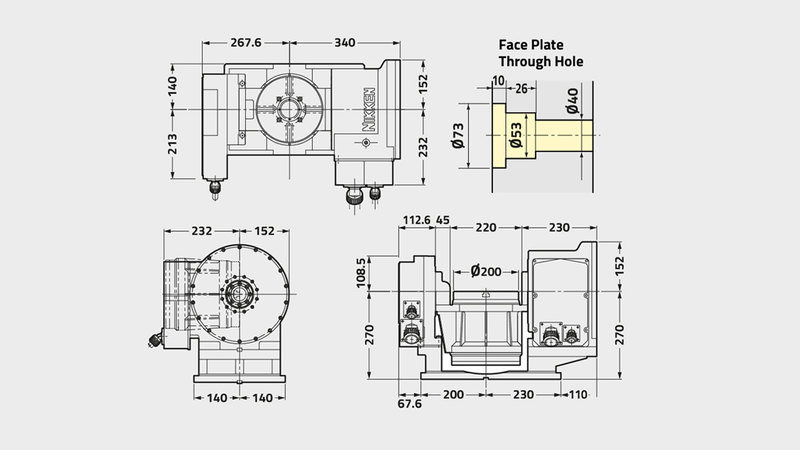

5AX-DD200BF2 Rotary Table Technical Diagram
  • Exclusive ‘Micro-Spike’ braking system

  • High Acceleration

  • High Speed rotation and positioning

  • Compact footprints

5AX-DD200BF2
Face Plate Diameter[Ømm] 200
Diameter of Spindle Hole [Ømm H7] 53
Centre Height (90°) [mm] 270
Table Height in Horizontal Position (0°) [mm] 270
Width of T Slot [mm] 12
AXIS Rotary Tilting
Clamping System AIR (0.5MPa) AIR (0.5MPa)
Clamping Torque [Nm] 150 500
Motor [FANUC] DiS60/400 DiS150/200
Encoder αiCz 512A
Min. Increment [Degrees] 0.001 0.001
Rotation Speed [min1] 200 150
Indexing Accuracy [sec] ±10 ±15
Max. Torque [Nm] 130 380
Constant Torque [Nm] 24 73/170
Net Weight [Kg] 185
Max. Work Load on Table 0° to 30° [Kg] 30
Max. Work Load on Table 30° to 90° [Kg] 30
