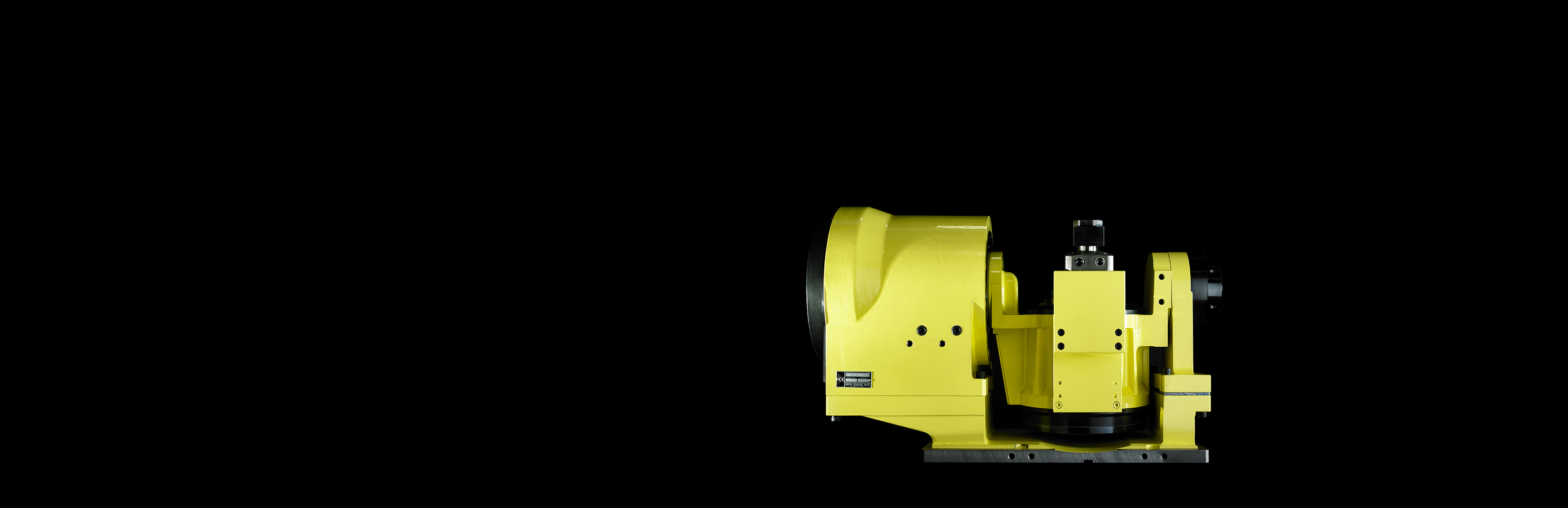

Our 5AX-DD100AF Twin Axis Direct Drive Rotary table is a new ‘ultra compact’ model recently added to the expanding DD range.
At only 554mm wide it is our smallest tilting CNC Rotary Table with DD motor and is perfect for compact machine tools and applications where the machining envelope is at a premium.
NIKKEN Direct Drive Rotary Tables are simple and accurate. Direct Drive tables feature no mechanical reduction mechanism such as the worm system featured within a standard rotary table construction.

-
Exclusive ‘Micro-Spike’ braking system
-
High acceleration
-
High Speed rotation and positioning
-
Compact footprint
Direct Drive tables provide extremely high rotation speeds with high acceleration and deceleration. The only limit is the driving torque of the motor! The individual process and set up needs to be considered but NIKKEN Direct Drive Rotary Tables are suitable for numerous applications where complicated forms and shapes are required to be machined quickly and effectively.
Nikken Rotary Table Catalogue – 2019
(PDF - 20.7 MB)
No Deposit & 12 Months Interest Free
No Deposit, 12 month Interest free period may available for your purchase via the UK Governments Coronavirus Business Interruption Loan Scheme (CBILS) or the Bounce Back Loan Scheme (BBLS). Both Government backed schemes are there to support businesses cash flow when making asset purchases, these schemes fund 100% of the Net purchase price (no deposit) with the first 12 months interest and fee free. Further information is available on the www.gov.uk website or feel free to contact us to discuss with our appointed accredited lender.
5AX-DD100AF | ||
---|---|---|
Face Plate Diameter[Ømm] | 90 | |
Diameter of Spindle Hole [Ømm H7] | 50 | |
Centre Height (90°) [mm] | 150 | |
Table Height in Horizontal Position (0°) [mm] | 230 | |
Width of T Slot [mm] | Ø8H7 Pin Hole | |
AXIS | Rotary | Tilting |
Clamping System | AIR (0.5MPa) | AIR (0.5MPa) |
Clamping Torque [Nm] | 75 | 205 |
Servo Motor [FANUC] | DiS15/1000 | DiS60/400 |
Encoder | MPRZ-536A | MPRZ-536A |
Min. Increment [Degrees] | 0.001 | 0.001 |
Rotation Speed [min1] | 200 | 200 |
Indexing Accuracy [sec] | ±10 | ±1 |
Net Weight [Kg] | 120 | |
Max. Work Load on Table 0° to 30° [Kg] | 20 | |
Max. Work Load on Table 0° to 90° [Kg] | 10 | |
Max. Torque [Nm] | 35 | 130 |
Constant Torque [Nm] | 8.7/16 | 24/65 |
