Part of the Built-In Tilting Rotary Table range, the 5AX-B450 is designed for high accuracy, unbeatable performance, and longevity.
Featuring a powerful hydraulic clamping system, the 5AX-B450 offers high strength and rigidity while maximising clearance. Offering an optional built-in type 17 ports rotary joint attachment and right or left motor positioning, the 5AX-B450 guarantees high performance and accuracy.
As with all NIKKEN products, the 5AX-B450 is designed for easy maintenance and durability.
![5AX- B450 5th Axis Rotary Table](/rails/active_storage/representations/eyJfcmFpbHMiOnsibWVzc2FnZSI6IkJBaHBBbHdGIiwiZXhwIjpudWxsLCJwdXIiOiJibG9iX2lkIn19--bf185285018d9a14331d58851b55713b4f9b7fa4/eyJfcmFpbHMiOnsibWVzc2FnZSI6IkJBaDdCam9VWTI5dFltbHVaVjl2Y0hScGIyNXpld2s2RUdGMWRHOWZiM0pwWlc1MFZEb01aM0poZG1sMGVVa2lDMk5sYm5SbGNnWTZCa1ZVT2d0eVpYTnBlbVZKSWcwNE1EQjRORFV3WGdZN0NGUTZDV055YjNCSkloQTRNREI0TkRVd0t6QXJNQVk3Q0ZRPSIsImV4cCI6bnVsbCwicHVyIjoidmFyaWF0aW9uIn19--504807c00c81bc60c54f8203f5b100694120b648/CNC1000_5AX-B450.jpg)

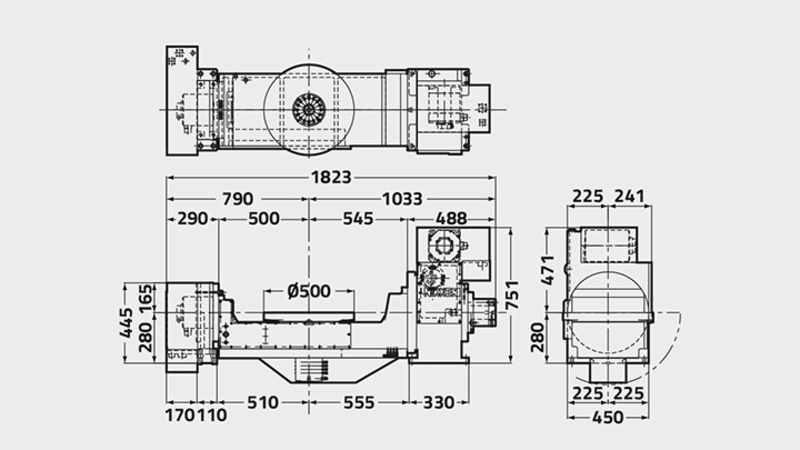

![5AX- B450 5th Axis Rotary Table Technical Diagram](/rails/active_storage/representations/eyJfcmFpbHMiOnsibWVzc2FnZSI6IkJBaHBBbDRHIiwiZXhwIjpudWxsLCJwdXIiOiJibG9iX2lkIn19--1a25d7ab3ca276c110c7699310f24002335f02ae/eyJfcmFpbHMiOnsibWVzc2FnZSI6IkJBaDdCam9VWTI5dFltbHVaVjl2Y0hScGIyNXpld2s2RUdGMWRHOWZiM0pwWlc1MFZEb01aM0poZG1sMGVVa2lDMk5sYm5SbGNnWTZCa1ZVT2d0eVpYTnBlbVZKSWcwNE1EQjRORFV3WGdZN0NGUTZDV055YjNCSkloQTRNREI0TkRVd0t6QXJNQVk3Q0ZRPSIsImV4cCI6bnVsbCwicHVyIjoidmFyaWF0aW9uIn19--504807c00c81bc60c54f8203f5b100694120b648/5AX-B450-100.jpg)
Nikken Rotary Table Catalogue – 2019
(PDF - 62.5 MB)
5AX-B450 | ||
---|---|---|
Face Plate Diameter[Ømm] | 500 | |
Table Range/Type | BUILT-IN | |
Diameter of Spindle Hole [Ømm H7] | 155 | |
Number of Spindles x Pitch [mm] | 1 | |
Centre Height (90°) [mm] | 280 | |
Table Height in Horizontal Position (0°) [mm] | 280 | |
Width of T Slot [mm] | - | |
AXIS | Rotary | Tilting (0°-105°) |
Clamping System | HYD | HYD |
Clamping Torque [Nm] | 1760 | 3870 |
Table Inertia at Motor Shaft [Kg m2 x 103] | 2.8 | 2.9 |
Servo Motor [min1] | αiF12·2000 | αiF22·2000 |
Min. Increment [Degrees] | 0.001 | 0.001 |
Rotation Speed [min1] | 22.2 | 16.6 |
Total Reduction Ratio | 1/90 | 1/120 |
Indexing Accuracy [sec] | 20 | 60 |
Indexing Accuracy Ultra Precision [sec] | - | - |
Net Weight [Kg] | 1050 (No Base) | |
Max. Work Load on Table 0° to 30° [Kg] | 300 | |
Max. Work Load on Table 30° to 90° [Kg] | 250 | |
Max. Thrust Load at Table Centre - Tilting Angle = 0° [N] | 31360 | |
Max. Thrust Load 'F' @ 'Lmm' from Table Centre - Tilting Angle = 0° [N] | F5488 @ L=250 | |
Max. Thrust Load 'F' @ 'Lmm' from Table Faceplate - Tilting Angle = 90° [N] | F11660 @ L=100 | |
Strength of Worm Wheel Without Brake (Against Dynamic Cutting Thrust) - Tilting Angle = 90° [FxL Nm] | 1166 | |
Max. Work Inertia [Kg m2] | 5.1 | |
Driving Torque [Nm] | 432 |
