The powerful 5AX-4MT-120 Tilting Rotary Table with Multi-Spindle, is ideal for achieving enhanced productivity.

The inclusion of the multiple spindles for the construction of the 5AX-4MT-120 make absolutely no compromise to performance and, just like the rest of the NIKKEN CNC Rotary Table range, promises to enhance productivity while maintaining unrivalled high precision, high rigidity and durability.

Having a powerful hydraulic clamping system, 5AX-4MT-120 offers unmatched high precision, strength and rigidity.  Manufactured with various attachments for fixings, the 5AX-4MT-120 is an ideal table for small items and mass-produced parts. Like all NIKKEN products, the 5AX-4MT-120 is designed for easy maintenance and life long durability.

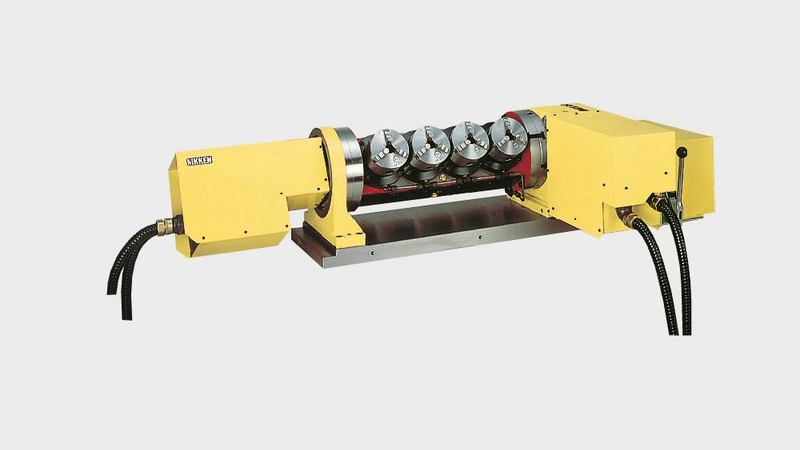

5AX-4MT-120 5th Axis Rotary Table
5AX-4MT-120 5th Axis Rotary Table Technical Diagram

Nikken Rotary Table Catalogue – 2019

(PDF - 62.5 MB)

5AX-4MT-120
Face Plate Diameter[Ømm] 105
Table Range/Type MULTI-SPINDLE
Diameter of Spindle Hole [Ømm H7] 60
Number of Spindles x Pitch [mm] 4 x 120
Centre Height (90°) [mm] 235
Table Height in Horizontal Position (0°) [mm] 300
Width of T Slot [mm] 16
AXIS Rotary Tilting (0°-105°)
Clamping System HYD HYD
Clamping Torque [Nm] 147 343
Table Inertia at Motor Shaft [Kg m2 x 103] 0.2 0.48
Servo Motor [min1] αiF8·3000 αiF4·3000
Min. Increment [Degrees] 0.001 0.001
Rotation Speed [min1] 16.6 (44.4) 25
Total Reduction Ratio 1/180 (1/45) 1/120
Indexing Accuracy [sec] ±45 ±30
Indexing Accuracy Ultra Precision [sec] - -
Net Weight [Kg] 350
Max. Work Load on Table 0° to 30° [Kg] 25
Max. Work Load on Table 30° to 90° [Kg] 15
Max. Thrust Load at Table Centre - Tilting Angle = 0° [N] 3920
Max. Thrust Load 'F' @ 'Lmm' from Table Centre - Tilting Angle = 0° [N] F2858 @ L=60
Max. Thrust Load 'F' @ 'Lmm' from Table Faceplate - Tilting Angle = 90° [N] F1380 @ L=0
F1040 @ L=100
Strength of Worm Wheel Without Brake (Against Dynamic Cutting Thrust) - Tilting Angle = 90° [FxL Nm] 49
Max. Work Inertia [Kg m2] 0.021
Driving Torque [Nm] 144
