One of NIKKEN'S best selling five-axis rotary tables, the 5AX-350 is one of our larger Standard Tilting Rotary Tables.

Offering unrivalled high precision and durability for medium to large-sized machining centres, the 5AX-350 features a powerful hydraulic clamping system, ensuring productivity that is second to none in its category. Designed specifically for use on horizontal machines and having an optional built-in type 6 ports rotary joint attachment, the 5AX-350 promises performance and accuracy.

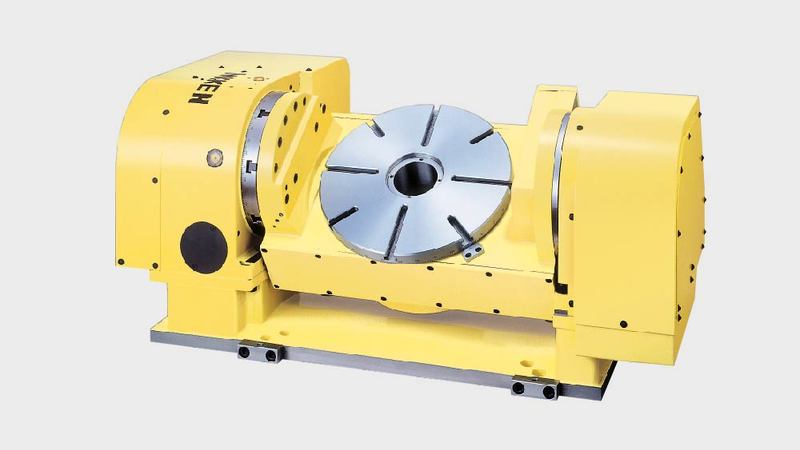

5AX-350 5th Axis Rotary Table

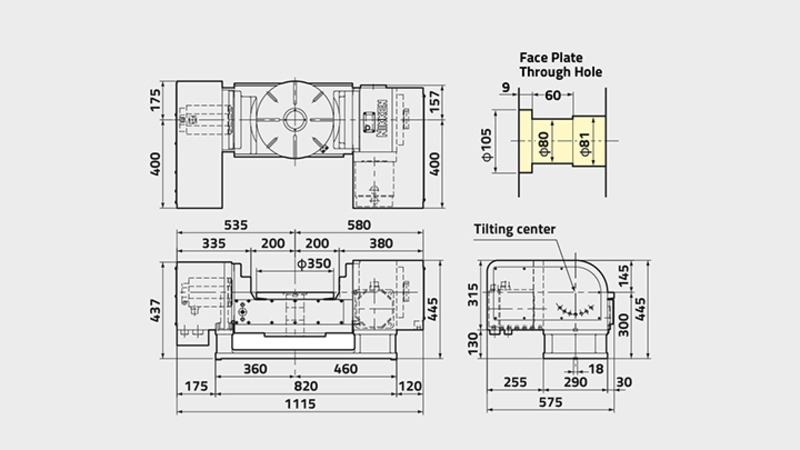

5AX-350 5th Axis Rotary Table Technical Diagram

Nikken Rotary Table Catalogue – 2019

(PDF - 62.5 MB)

5AX-350
Face Plate Diameter[Ømm] 350
Table Range/Type LARGE
Diameter of Spindle Hole [Ømm H7] 80
Number of Spindles x Pitch [mm] 1
Centre Height (90°) [mm] 300
Table Height in Horizontal Position (0°) [mm] 300
Width of T Slot [mm] 12
AXIS Rotary Tilting (0°-105°)
Clamping System HYD HYD
Clamping Torque [Nm] 1568 1568
Table Inertia at Motor Shaft [Kg m2 x 103] 0.8 1.35
Servo Motor [min1] αiF8·2000 αiF12·2000
Min. Increment [Degrees] 0.001 0.001
Rotation Speed [min1] 22.2 22.2
Total Reduction Ratio 1/90 1/90
Indexing Accuracy [sec] 20 60
Indexing Accuracy Ultra Precision [sec] - -
Net Weight [Kg] 420 (355 without base)
Max. Work Load on Table 0° to 30° [Kg] 200
Max. Work Load on Table 30° to 90° [Kg] 200
Max. Thrust Load at Table Centre - Tilting Angle = 0° [N] 19600
Max. Thrust Load 'F' @ 'Lmm' from Table Centre - Tilting Angle = 0° [N] F4900 @ L=175
Max. Thrust Load 'F' @ 'Lmm' from Table Faceplate - Tilting Angle = 90° [N] F17160 @ L=0
F8580 @ L=100
Strength of Worm Wheel Without Brake (Against Dynamic Cutting Thrust) - Tilting Angle = 90° [FxL Nm] 858
Max. Work Inertia [Kg m2] 3.2
Driving Torque [Nm] 288
