The 5AX-2MT-105 tilting rotary table with multi-spindle, promises enhanced productivity while maintaining unrivalled high precision.

Ideal for small items and mass-produced parts, the 5AX-2MT-105 comes with various attachments for fixing work, providing accuracy and rigidity that is second to none. As with all NIKKEN products, the 5AX-2MT-105 is designed for high performance, easy maintenance and longevity.

The inclusion of the multiple spindles for the construction of the 5AX-2MT-105 make absolutely no compromise to performance and, just like the rest of the NIKKEN CNC Rotary Table range, promises to enhance productivity while maintaining unrivalled high precision, high rigidity and durability.

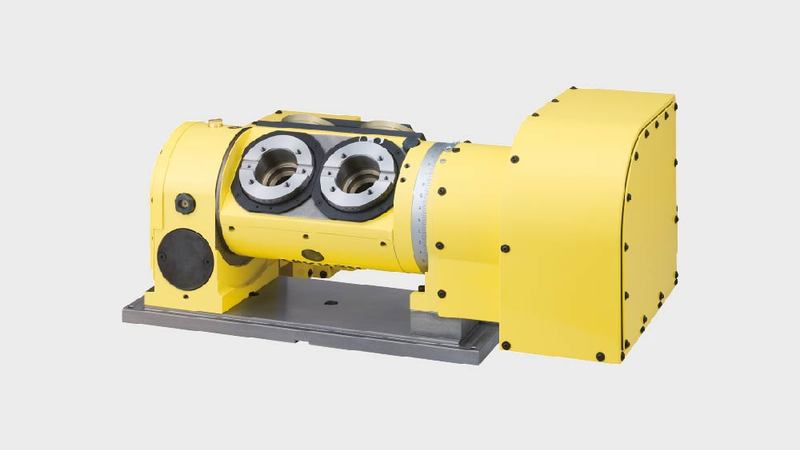

5AX-2MT-105 5th Axis Rotary Table

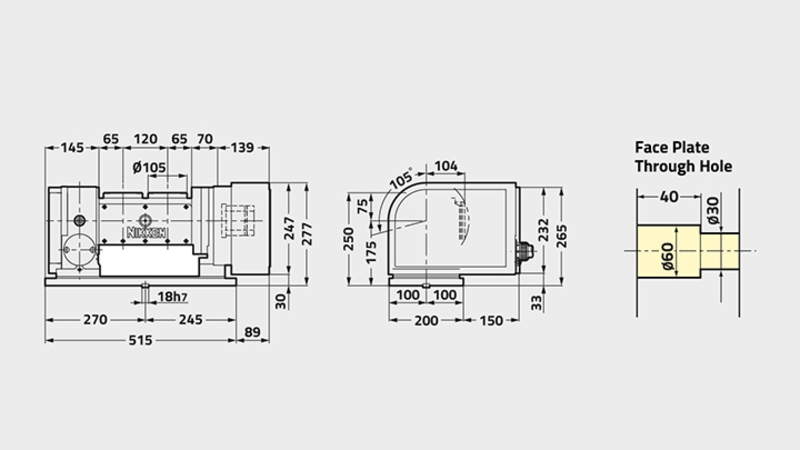

5AX-2MT-105 5th Axis Rotary Table Technical Diagram

Nikken Rotary Table Catalogue – 2019

(PDF - 62.5 MB)

5AX-2MT-105
Face Plate Diameter[Ømm] 105
Table Range/Type MULTI-SPINDLE
Diameter of Spindle Hole [Ømm H7] 60
Number of Spindles x Pitch [mm] 2 x 120
Centre Height (90°) [mm] 175
Table Height in Horizontal Position (0°) [mm] 250
Width of T Slot [mm] 16
AXIS Rotary Tilting (0°-105°)
Clamping System AIR AIR
Clamping Torque [Nm] 147 147
Table Inertia at Motor Shaft [Kg m2 x 103] 0.13 0.13
Servo Motor [min1] αiF2·3000 αiF2·3000
Min. Increment [Degrees] 0.001 0.001
Rotation Speed [min1] 33.3 16.6
Total Reduction Ratio 1/90 1/180
Indexing Accuracy [sec] ±30 60
Indexing Accuracy Ultra Precision [sec] - -
Net Weight [Kg] 150
Max. Work Load on Table 0° to 30° [Kg] 15
Max. Work Load on Table 30° to 90° [Kg] 10
Max. Thrust Load at Table Centre - Tilting Angle = 0° [N] 3920
Max. Thrust Load 'F' @ 'Lmm' from Table Centre - Tilting Angle = 0° [N] F784 @ L=60
Max. Thrust Load 'F' @ 'Lmm' from Table Faceplate - Tilting Angle = 90° [N] F653 @ L=0
F490 @ L=100
Strength of Worm Wheel Without Brake (Against Dynamic Cutting Thrust) - Tilting Angle = 90° [FxL Nm] 49
Max. Work Inertia [Kg m2] 0.014
Driving Torque [Nm] 36
