Despite it's size the 5AX-201 offers unrivalled high precision, high rigidity and durability, making this tilting rotary table the ideal compact solution.

With pneumatic clamping, this rotary table comes with various attachments providing high accuracy with maximum clearance, at an affordable price. Built-in type 4 ports rotary joint can be attached as an option. Like all NIKKEN products, the 5AX-201 is designed for easy maintenance and longevity.

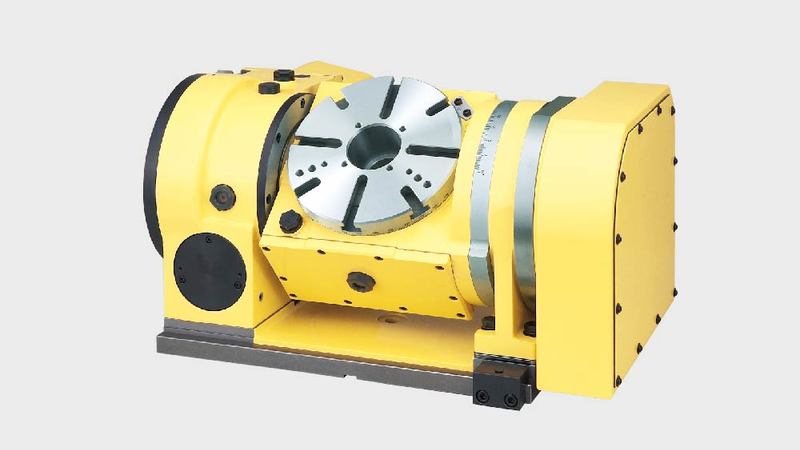

5AX-201 5th Axis Rotary Table
5AX-201 5th Axis Rotary Table Technical Diagram

Available with NIKKEN Rental Scheme

Read More
Face Plate Diameter[Ømm] 200
Table Range/Type COMPACT
Diameter of Spindle Hole [Ømm H7] 60
Number of Spindles x Pitch [mm] 1
Centre Height (90°) [mm] 180
Table Height in Horizontal Position (0°) [mm] 260
Width of T Slot [mm] 12
AXIS Rotary Tilting (0°-105°)
Clamping System AIR/HYD AIR/HYD
Clamping Torque [Nm] 303/588 303/612
Table Inertia at Motor Shaft [Kg m2 x 103] 0.11 0.16
Servo Motor [min1] αiF2·2000 αiS4·2000
Min. Increment [Degrees] 0.001 0.001
Rotation Speed [min1] 22.2 16.6
Total Reduction Ratio 1/90 1/120
Indexing Accuracy [sec] 20 60
Indexing Accuracy Ultra Precision [sec] - -
Net Weight [Kg] 160
Max. Work Load on Table 0° to 30° [Kg] 60
Max. Work Load on Table 30° to 90° [Kg] 40
Max. Thrust Load at Table Centre - Tilting Angle = 0° [N] 9800
Max. Thrust Load 'F' @ 'Lmm' from Table Centre - Tilting Angle = 0° [N] F4900 @ L=100
Max. Thrust Load 'F' @ 'Lmm' from Table Faceplate - Tilting Angle = 90° [N] F5880 @ L=0
F2940 @ L=100
Strength of Worm Wheel Without Brake (Against Dynamic Cutting Thrust) - Tilting Angle = 90° [FxL Nm] 382
Max. Work Inertia [Kg m2] 0.5
Driving Torque [Nm] 72
