The NIKKEN 5AX-130 is one of our smallest tilting CNC Rotary Table for compact machines.

The 5AX-130 is also compatible with an extensive range of attachments such as jig plates, scroll chucks and centre sockets which are a great solution to manufacturing high-precision electronic devices such as smartphones and automotive parts etc.

The rotary table can be supplied with a range of motors and controllers to meet your specific requirements - see the downloads section for more information or contact us to learn more.

5AX-130 5th Axis Rotary Table

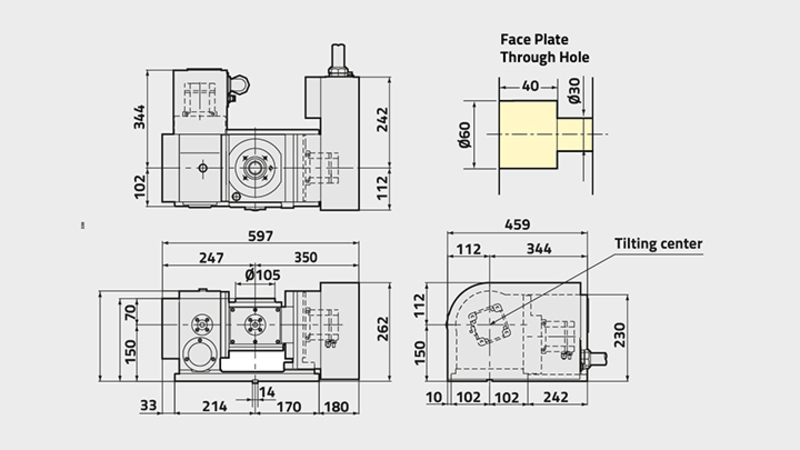

5AX-130 5th Axis Rotary Table Technical Diagram

Nikken Rotary Table Catalogue – 2019

(PDF - 62.5 MB)

5AX-130
Face Plate Diameter[Ømm] 105 (130 Sub-Plate)
Table Range/Type COMPACT
Diameter of Spindle Hole [Ømm H7] 60
Number of Spindles x Pitch [mm] 1
Centre Height (90°) [mm] 150
Table Height in Horizontal Position (0°) [mm] 235
Width of T Slot [mm] 10H7 Pin
AXIS Rotary Tilting (0°-105°)
Clamping System AIR AIR
Clamping Torque [Nm] 205 303
Table Inertia at Motor Shaft [Kg m2 x 103] 0.09 0.12
Servo Motor [min1] αiF2·3000 αiF2·3000
Min. Increment [Degrees] 0.001 0.001
Rotation Speed [min1] 33.3 16.6
Total Reduction Ratio 1/90 1/180
Indexing Accuracy [sec] ±30 60
Indexing Accuracy Ultra Precision [sec] - -
Net Weight [Kg] 115
Max. Work Load on Table 0° to 30° [Kg] 50
Max. Work Load on Table 30° to 90° [Kg] 25
Max. Thrust Load at Table Centre - Tilting Angle = 0° [N] 5880
Max. Thrust Load 'F' @ 'Lmm' from Table Centre - Tilting Angle = 0° [N] F2940 @ L=65
Max. Thrust Load 'F' @ 'Lmm' from Table Faceplate - Tilting Angle = 90° [N] F3460 @ L=0
F1590 @ L=100
Strength of Worm Wheel Without Brake (Against Dynamic Cutting Thrust) - Tilting Angle = 90° [FxL Nm] 98
Max. Work Inertia [Kg m2] 0.12
Driving Torque [Nm] 72
