Providing incredible accuracy and a higher thrust load than standard, the NSVX500 is one of our most powerful Rotary Tables yet.

Designed for use within the oil and gas related industries, the NSVX500 has an unparalleled hydraulic clamping system, making it ideal for deep cutting highly rigid material.

The NSVX500 is designed for high strength, easy maintenance and life long durability.

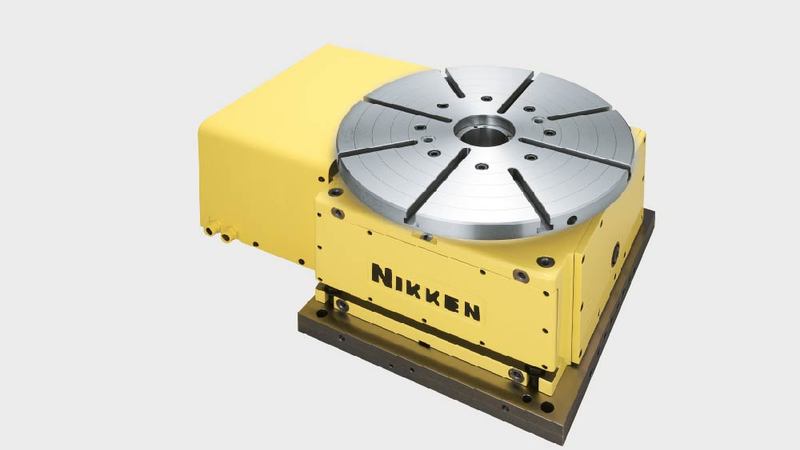

NSVX500 4th Axis Rotary Table
NSVX500 4th Axis Rotary Table Technical Diagram

Nikken Rotary Table Catalogue – 2019

(PDF - 62.5 MB)

NSVX500
Face Plate Diameter[Ømm] 500
Table Range/Type HIRTH
Standard Motor Orientation (Left Hand Option Available for Right Hand Tables) RIGHT
Diameter of Spindle Hole [Ømm H7] 80
Number of Spindles x Pitch [mm] 1
Centre Height [mm] 310
Width of T-Slot [mm] 14
Clamping System HYD
Clamping Torque [Nm] 5880
Table Inertia at Motor Shaft [Kg m2 x 103] 3.9
Servo Motor [min1] αiF12·2000
Min. Increment [Degrees] 1/0.001
Rotation Speed [min1] 16.6
Total Reduction Ratio 1/120
Indexing Accuracy [sec] ±2
Indexing Accuracy Ultra Precision [sec] N/A
Net Weight [Kg] 410
Max. Vertical Work Load on Table [Kg] 250
Max. Horizontal Work Load on Table [Kg] 500
Max. Horizontal Thrust Load on the Table [N] 58800
Strength of Worm Wheel Without Brake (Against Dynamic Cutting Thrust) [FxL Nm] 5880
Max. Thrust Load on the Table [FxL Nm] 3920
Guideline of Max. Unbalancing Load (Vertical with Support) [Nm] 100
Max. Work Inertia [Kg m2] 6.4
Driving Torque [Nm] 576
