Providing incredible accuracy and a higher thrust load than standard, the NSVX400T is one of our most powerful Rotary Tables yet.

Designed for use within the oil and gas-related industries, the NSVX400T has an unparalleled hydraulic clamping system, making it ideal for deep cutting highly rigid material.

With a top sided mounted motor, the NSVX400T also maximises clearance, allowing for easy access.

NSVX400T Rotary Table

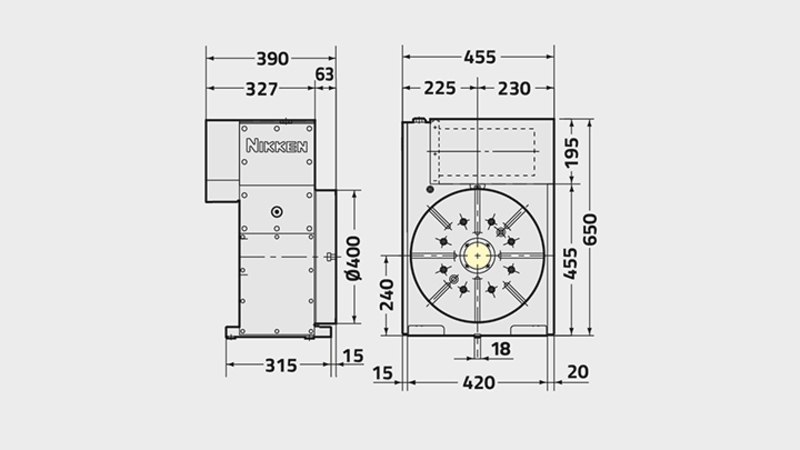

NSVX400T Rotary Table Technical Diagram

Nikken Rotary Table Catalogue – 2019

(PDF - 62.5 MB)

NSVX400T
Face Plate Diameter[Ømm] 400
Table Range/Type HIRTH COUPLING
Standard Motor Orientation (Left Hand Option Available for Right Hand Tables) TOP
Diameter of Spindle Hole [Ømm H7] 80
Number of Spindles x Pitch [mm] 1
Centre Height [mm] 350
Width of T-Slot [mm] 14
Clamping System HYD
Clamping Torque [Nm] 5880
Table Inertia at Motor Shaft [Kg m2 x 103] 2.9
Servo Motor [min1] αiF12·2000
Min. Increment [Degrees] 1/0.001
Rotation Speed [min1] 16.6
Total Reduction Ratio 1/120
Indexing Accuracy [sec] ±2
Indexing Accuracy Ultra Precision [sec] N/A
Net Weight [Kg] 350
Max. Vertical Work Load on Table [Kg] 250
Max. Horizontal Work Load on Table [Kg] N/A
Max. Horizontal Thrust Load on the Table [N] 58800
Strength of Worm Wheel Without Brake (Against Dynamic Cutting Thrust) [FxL Nm] 5880
Max. Thrust Load on the Table [FxL Nm] 3920
Guideline of Max. Unbalancing Load (Vertical with Support) [Nm] N/A
Max. Work Inertia [Kg m2] 11.5
Driving Torque [Nm] 576
