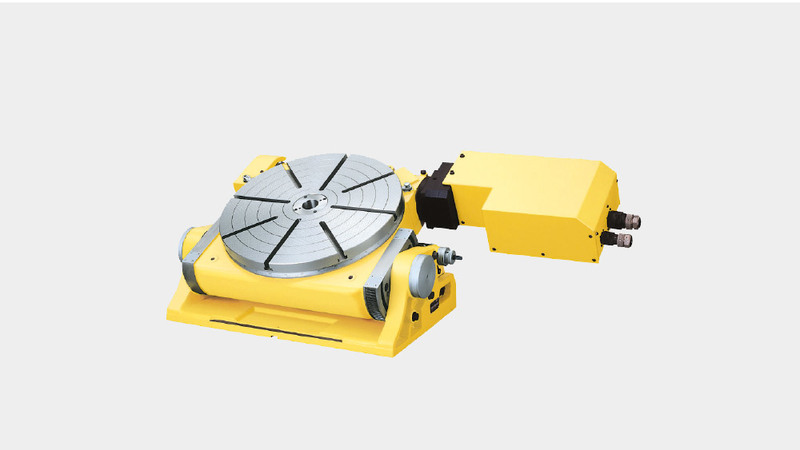

Suitable for a variety of applications due to the numerical tilting axis control, the NST500 is designed for unmatched high precision and performance.

With a manual tilt of 0 - 90 degrees and CNC controlled indexing for adaptation to all kinds of machining, the NST500 offers extensive options for use.

Like all NIKKEN products, the NST500 is designed for high strength, easy maintenance and life long durability.

Also available in 250mm and 300mm Table Diameter.

NST500 Rotary Table

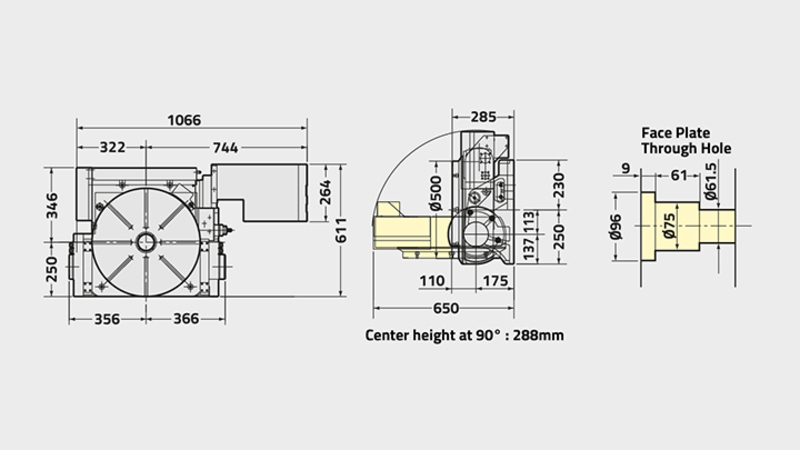

NST500 Rotary Table Technical Diagram

Nikken Rotary Table Catalogue – 2019

(PDF - 62.5 MB)

NST500
Face Plate Diameter[Ømm] 500
Table Range/Type MANUAL TILT
Standard Motor Orientation (Left Hand Option Available for Right Hand Tables) RIGHT
Diameter of Spindle Hole [Ømm H7] 75
Number of Spindles x Pitch [mm] 1
Centre Height [mm] 288
Width of T-Slot [mm] 14
Clamping System AIR
Clamping Torque [Nm] 196
Table Inertia at Motor Shaft [Kg m2 x 103] 0.69
Servo Motor [min1] αiF8·2000
Min. Increment [Degrees] 0.001
Rotation Speed [min1] 5.5
Total Reduction Ratio 1/360
Indexing Accuracy [sec] 20
Indexing Accuracy Ultra Precision [sec] N/A
Net Weight [Kg] 320
Max. Vertical Work Load on Table [Kg] 200
Max. Horizontal Work Load on Table [Kg] 500
Max. Horizontal Thrust Load on the Table [N] 75000
Strength of Worm Wheel Without Brake (Against Dynamic Cutting Thrust) [FxL Nm] 2884
Max. Thrust Load on the Table [FxL Nm] 8330
Guideline of Max. Unbalancing Load (Vertical with Support) [Nm] N/A
Max. Work Inertia [Kg m2] 14.7
Driving Torque [Nm] 1152
