Suitable for a variety of applications due to the numerical tilting axis control, the NST300 is designed for unmatched high precision and performance.

With a manual tilt of 0 - 90 degrees and CNC controlled indexing for adaptation to all kinds of machining, the NST300 offers extensive options for use.

Like all NIKKEN products, the NST300 is designed for high strength, easy maintenance and life long durability.

Also available in 250mm and 500mm Table Diameter.

NST300 Rotary Table

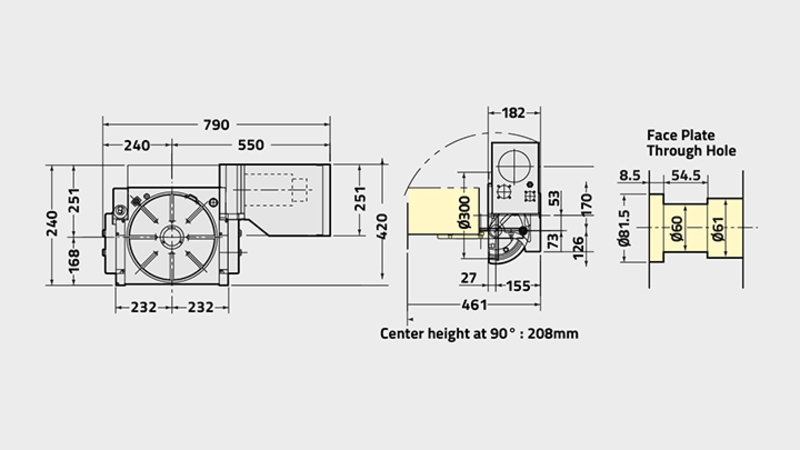

NST300 Rotary Table Technical Diagram
Face Plate Diameter[Ømm] 300
Table Range/Type MANUAL TILT
Standard Motor Orientation (Left Hand Option Available for Right Hand Tables) RIGHT
Diameter of Spindle Hole [Ømm H7] 60
Number of Spindles x Pitch [mm] 1
Centre Height [mm] 208
Width of T-Slot [mm] 12
Clamping System AIR
Clamping Torque [Nm] 196
Table Inertia at Motor Shaft [Kg m2 x 103] 0.59
Servo Motor [min1] αiF4·2000
Min. Increment [Degrees] 0.001
Rotation Speed [min1] 11.1
Total Reduction Ratio 1/180
Indexing Accuracy [sec] 20
Indexing Accuracy Ultra Precision [sec] N/A
Net Weight [Kg] 135
Max. Vertical Work Load on Table [Kg] 100
Max. Horizontal Work Load on Table [Kg] 300
Max. Horizontal Thrust Load on the Table [N] 31860
Strength of Worm Wheel Without Brake (Against Dynamic Cutting Thrust) [FxL Nm] 903
Max. Thrust Load on the Table [FxL Nm] 2010
Guideline of Max. Unbalancing Load (Vertical with Support) [Nm] N/A
Max. Work Inertia [Kg m2] 3.37
Driving Torque [Nm] 288
