Providing high accuracy and life long durability, the CNC601T is one of NIKKEN'S most extensive Rotary Tables yet.
With a top sided mounted motor, the CNC601T maximises clearance, allowing for easy access and providing an option for a cable swing box. Ideal for B-axis of a general-purpose horizontal machining centre or automation of small parts by mounting a jig holder, the CNC601T guarantees high strength and quality outcomes.
As with all NIKKEN products, the CNC601T is designed for high performance, easy maintenance and life long durability.

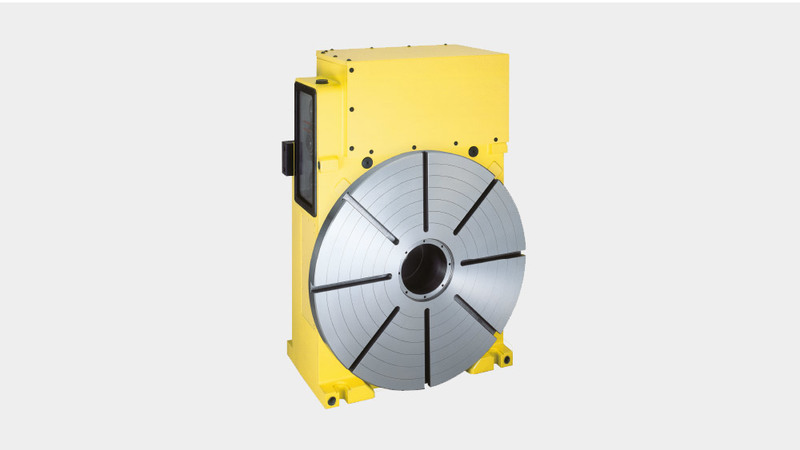

![CNC601T Rotary Table](/rails/active_storage/representations/eyJfcmFpbHMiOnsibWVzc2FnZSI6IkJBaHBBb1FGIiwiZXhwIjpudWxsLCJwdXIiOiJibG9iX2lkIn19--396081969c7677a571048a01226f266b2626f2bf/eyJfcmFpbHMiOnsibWVzc2FnZSI6IkJBaDdCam9VWTI5dFltbHVaVjl2Y0hScGIyNXpld2s2RUdGMWRHOWZiM0pwWlc1MFZEb01aM0poZG1sMGVVa2lDMk5sYm5SbGNnWTZCa1ZVT2d0eVpYTnBlbVZKSWcwNE1EQjRORFV3WGdZN0NGUTZDV055YjNCSkloQTRNREI0TkRVd0t6QXJNQVk3Q0ZRPSIsImV4cCI6bnVsbCwicHVyIjoidmFyaWF0aW9uIn19--504807c00c81bc60c54f8203f5b100694120b648/CNC601T.jpg)
![CNC601T Rotary Table Technical Diagram](/rails/active_storage/representations/eyJfcmFpbHMiOnsibWVzc2FnZSI6IkJBaHBBZ3dHIiwiZXhwIjpudWxsLCJwdXIiOiJibG9iX2lkIn19--8d278e44af54ff0d6873b0308030b35d95f250ad/eyJfcmFpbHMiOnsibWVzc2FnZSI6IkJBaDdCam9VWTI5dFltbHVaVjl2Y0hScGIyNXpld2s2RUdGMWRHOWZiM0pwWlc1MFZEb01aM0poZG1sMGVVa2lDMk5sYm5SbGNnWTZCa1ZVT2d0eVpYTnBlbVZKSWcwNE1EQjRORFV3WGdZN0NGUTZDV055YjNCSkloQTRNREI0TkRVd0t6QXJNQVk3Q0ZRPSIsImV4cCI6bnVsbCwicHVyIjoidmFyaWF0aW9uIn19--504807c00c81bc60c54f8203f5b100694120b648/CNC601T-100.jpg)
Nikken Rotary Table Catalogue – 2019
(PDF - 62.5 MB)
CNC601T | |
---|---|
Face Plate Diameter[Ømm] | 600 |
Table Range/Type | LARGE |
Standard Motor Orientation (Left Hand Option Available for Right Hand Tables) | TOP |
Diameter of Spindle Hole [Ømm H7] | 130 |
Number of Spindles x Pitch [mm] | 1 |
Centre Height [mm] | 310 |
Width of T-Slot [mm] | 14 |
Clamping System | HYD |
Clamping Torque [Nm] | 4655 |
Table Inertia at Motor Shaft [Kg m2 x 103] | 8.8 |
Servo Motor [min1] | αiF12·2000 |
Min. Increment [Degrees] | 0.001 |
Rotation Speed [min1] | 11.1 |
Total Reduction Ratio | 1/180 |
Indexing Accuracy [sec] | 15 |
Indexing Accuracy Ultra Precision [sec] | N/A |
Net Weight [Kg] | 525 |
Max. Vertical Work Load on Table [Kg] | 400 |
Max. Horizontal Work Load on Table [Kg] | N/A |
Max. Horizontal Thrust Load on the Table [N] | 150000 |
Strength of Worm Wheel Without Brake (Against Dynamic Cutting Thrust) [FxL Nm] | 5709 |
Max. Thrust Load on the Table [FxL Nm] | 16650 |
Guideline of Max. Unbalancing Load (Vertical with Support) [Nm] | 200 |
Max. Work Inertia [Kg m2] | 37 |
Driving Torque [Nm] | 864 |
