The NIKKEN CNC321 uses hydraulic clamping for a clamping torque of 1760Nm and is ideal for the automation of small parts by mounting of jig holder.

This difference between the CNC321 and the CNC321T is the motor is mounted to the top side of the rotary table. We supply the CNC321 with a motor mounted to the left or right-hand side, CNC321, or back mounted, CNC321B. Both with high-speed options available.

The rotary table can be supplied with a range of motors and controllers to meet your specific requirements - see the downloads section for more information or contact us to learn more.

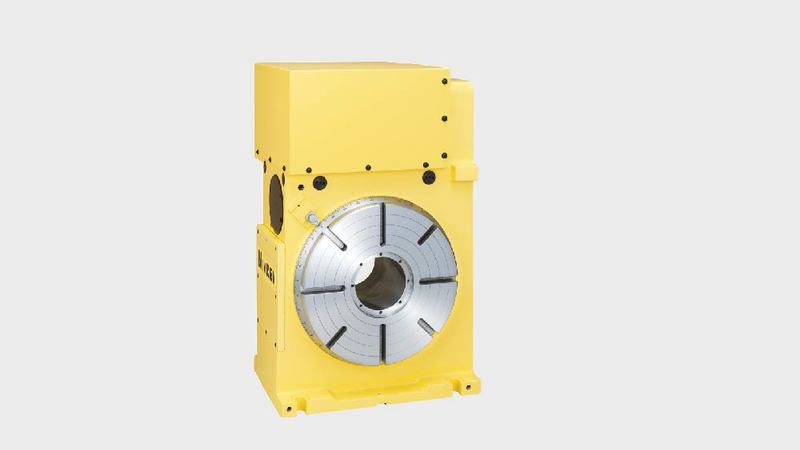

CNC321T Rotary Table
CNC321T Rotary Table Technical Diagram

Nikken Rotary Table Catalogue – 2019

(PDF - 62.5 MB)

CNC321T
Face Plate Diameter[Ømm] 320
Table Range/Type STANDARD
Standard Motor Orientation (Left Hand Option Available for Right Hand Tables) TOP
Diameter of Spindle Hole [Ømm H7] 105
Number of Spindles x Pitch [mm] 1
Centre Height [mm] 240
Width of T-Slot [mm] 12
Clamping System HYD
Clamping Torque [Nm] 1760
Table Inertia at Motor Shaft [Kg m2 x 103] 2
Servo Motor [min1] αiF12·2000
Min. Increment [Degrees] 0.001
Rotation Speed [min1] 16.6
Total Reduction Ratio 1/120
Indexing Accuracy [sec] 15
Indexing Accuracy Ultra Precision [sec] N/A
Net Weight [Kg] 220
Max. Vertical Work Load on Table [Kg] 250
Max. Horizontal Work Load on Table [Kg] N/A
Max. Horizontal Thrust Load on the Table [N] 53100
Strength of Worm Wheel Without Brake (Against Dynamic Cutting Thrust) [FxL Nm] 2648
Max. Thrust Load on the Table [FxL Nm] 3840
Guideline of Max. Unbalancing Load (Vertical with Support) [Nm] 100
Max. Work Inertia [Kg m2] 8
Driving Torque [Nm] 576
