Part of the high-speed range, the CNCZ601 is designed for high accuracy, unbeatable performance, and longevity.

With a large through-hole and powerful clamping system, the CNCZ601 offers high strength and rigidity, making it ideal for dividing/lead cutting large scale work and cutting high rigid material.

Like all NIKKEN products, the CNCZ601 is designed for easy maintenance and life long durability.

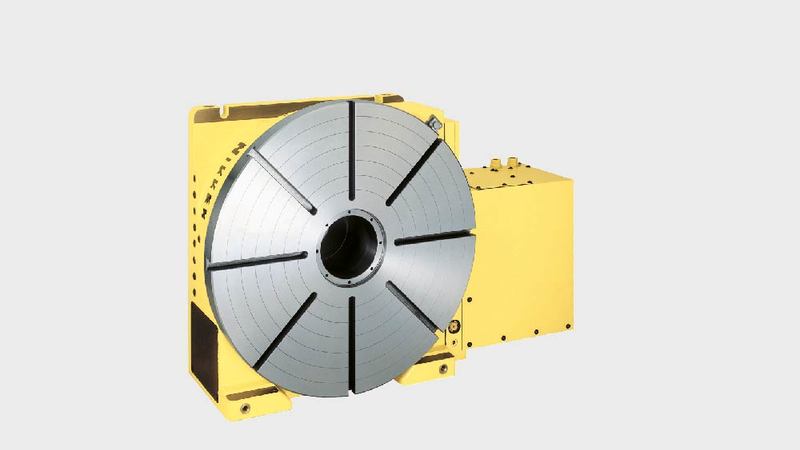

CNC(Z)601 Rotary Table

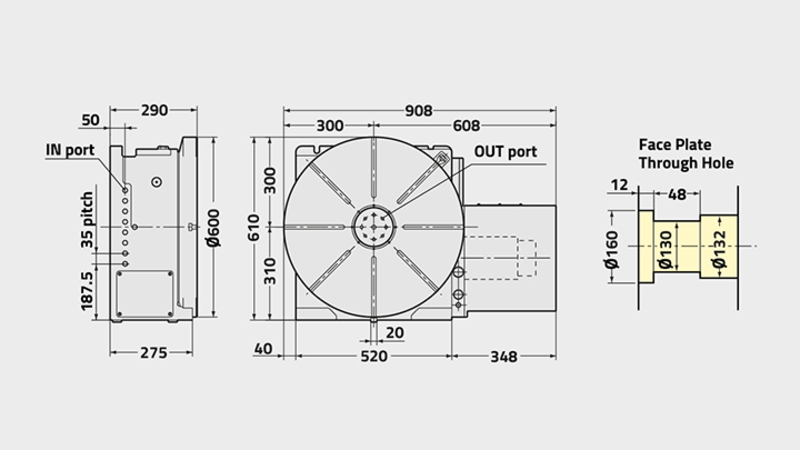

CNC(Z)601 Rotary Table Technical Diagram

Nikken Rotary Table Catalogue – 2019

(PDF - 62.5 MB)

CNC(Z)601
Face Plate Diameter[Ømm] 600
Table Range/Type LARGE
Standard Motor Orientation (Left Hand Option Available for Right Hand Tables) RIGHT
Diameter of Spindle Hole [Ømm H7] 130
Number of Spindles x Pitch [mm] 1
Centre Height [mm] 310
Width of T-Slot [mm] 14
Clamping System HYD
Clamping Torque [Nm] 4655
Table Inertia at Motor Shaft [Kg m2 x 103] 4.9
Servo Motor [min1] αiF12·2000
Min. Increment [Degrees] 0.001
Rotation Speed [min1] 11.1 (22.2)
Total Reduction Ratio 1/180 (1/90)
Indexing Accuracy [sec] 15
Indexing Accuracy Ultra Precision [sec] N/A
Net Weight [Kg] 500
Max. Vertical Work Load on Table [Kg] 400
Max. Horizontal Work Load on Table [Kg] 800
Max. Horizontal Thrust Load on the Table [N] 150000
Strength of Worm Wheel Without Brake (Against Dynamic Cutting Thrust) [FxL Nm] 5709
Max. Thrust Load on the Table [FxL Nm] 16650
Guideline of Max. Unbalancing Load (Vertical with Support) [Nm] 200
Max. Work Inertia [Kg m2] 37 (18.5)
Driving Torque [Nm] 864 (690)
