The powerful CNC(Z)503H Built-In Rotary Table is ideal for achieving unmatched high precision and performance.

Having a powerful hydraulic clamping system, CNC(Z)503H offers high strength and rigidity and is manufactured exclusively as horizontal models, maximising clearance. Like all NIKKEN products, the CNC(Z)503H is designed for easy maintenance and life long durability.

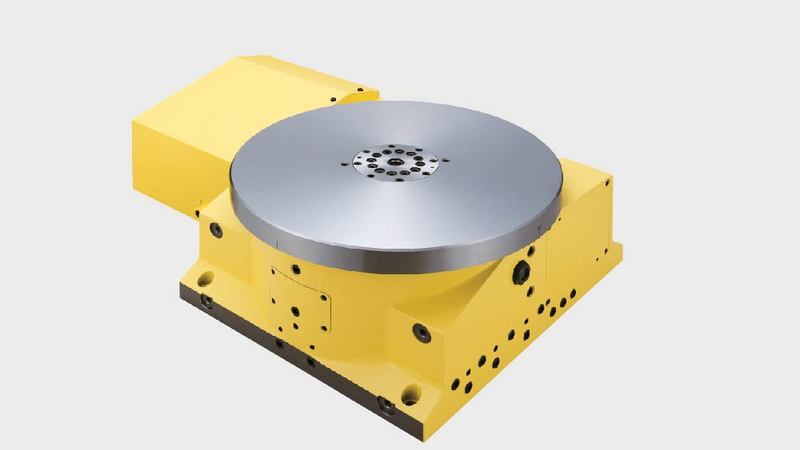

CNC(Z)503H Rotary Table

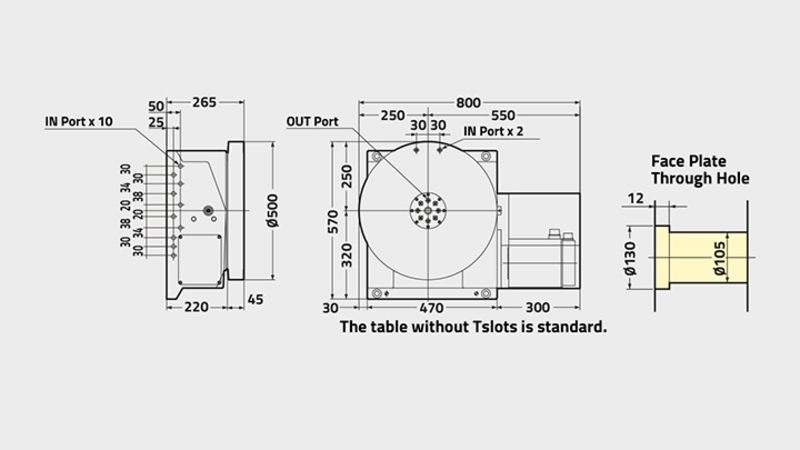

CNC(Z)503H Rotary Table Technical Diagram

Nikken Rotary Table Catalogue – 2019

(PDF - 62.5 MB)

CNC(Z)503H
Face Plate Diameter[Ømm] 500
Table Range/Type BUILT-IN
Standard Motor Orientation (Left Hand Option Available for Right Hand Tables) RIGHT
Diameter of Spindle Hole [Ømm H7] 105
Number of Spindles x Pitch [mm] 1
Centre Height [mm] N/A
Width of T-Slot [mm] N/A
Clamping System HYD
Clamping Torque [Nm] 1890
Table Inertia at Motor Shaft [Kg m2 x 103] 8
Servo Motor [min1] αiF12·2000
Min. Increment [Degrees] 0.001
Rotation Speed [min1] 16.6 (33.3)
Total Reduction Ratio 1/20 (1/60)
Indexing Accuracy [sec] 20
Indexing Accuracy Ultra Precision [sec] N/A
Net Weight [Kg] 400
Max. Vertical Work Load on Table [Kg] N/A
Max. Horizontal Work Load on Table [Kg] 1000
Max. Horizontal Thrust Load on the Table [N] 63720
Strength of Worm Wheel Without Brake (Against Dynamic Cutting Thrust) [FxL Nm] 3531
Max. Thrust Load on the Table [FxL Nm] 5990
Guideline of Max. Unbalancing Load (Vertical with Support) [Nm] N/A
Max. Work Inertia [Kg m2] 32.5 (16.3)
Driving Torque [Nm] 576 (460)
