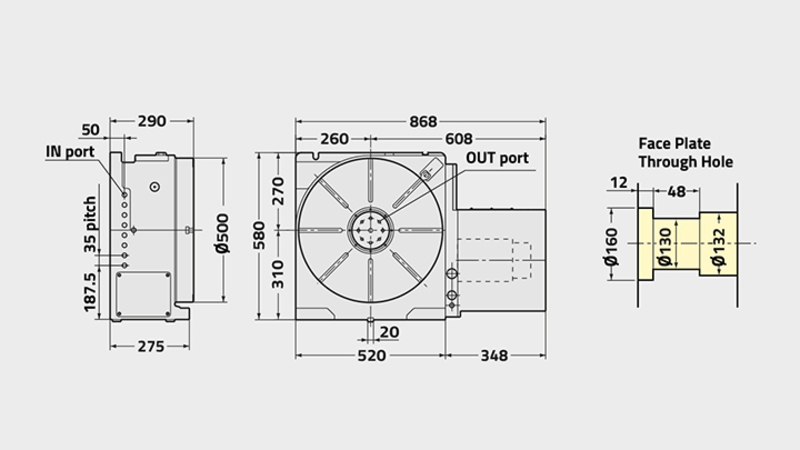

CNC(Z)501
Rotary Table
Part of the high-speed range, the CNCZ501 is designed for high accuracy, unbeatable performance, and longevity.
With a large through-hole and powerful clamping system, the CNCZ501 offers high strength and rigidity, making it ideal for dividing/lead cutting large scale work and cutting high rigid material. Like all NIKKEN products, the CNCZ501 is designed for easy maintenance and life long durability.
The CNCZ501 comes with a high-speed motor as standard that can quickly deliver a substantial return on investment.
Nikken Rotary Table Catalogue – 2019
(PDF - 62.5 MB)
| CNC(Z)501 | |
|---|---|
| Face Plate Diameter[Ømm] | 500 |
| Table Range/Type | LARGE |
| Standard Motor Orientation (Left Hand Option Available for Right Hand Tables) | RIGHT |
| Diameter of Spindle Hole [Ømm H7] | 130 |
| Number of Spindles x Pitch [mm] | 1 |
| Centre Height [mm] | 310 |
| Width of T-Slot [mm] | 14 |
| Clamping System | HYD |
| Clamping Torque [Nm] | 4655 |
| Table Inertia at Motor Shaft [Kg m2 x 103] | 6.8 |
| Servo Motor [min1] | αiF12·2000 |
| Min. Increment [Degrees] | 0.001 |
| Rotation Speed [min1] | 16.6 (33.3) |
| Total Reduction Ratio | 1/120 (1/60) |
| Indexing Accuracy [sec] | 15 |
| Indexing Accuracy Ultra Precision [sec] | N/A |
| Net Weight [Kg] | 470 |
| Max. Vertical Work Load on Table [Kg] | 400 |
| Max. Horizontal Work Load on Table [Kg] | 800 |
| Max. Horizontal Thrust Load on the Table [N] | 150000 |
| Strength of Worm Wheel Without Brake (Against Dynamic Cutting Thrust) [FxL Nm] | 5709 |
| Max. Thrust Load on the Table [FxL Nm] | 16650 |
| Guideline of Max. Unbalancing Load (Vertical with Support) [Nm] | 200 |
| Max. Work Inertia [Kg m2] | 19.4 (9.7) |
| Driving Torque [Nm] | 576 (460) |
