The CNC260T is the most versatile Rotary Table ever produced by NIKKEN. This table is commonly used on a wide range of horizontal machining centres to provide 4th axis capabilities at minimal costs.

The table can be installed with a standard air brake or can be equipped with a hydraulic braking system which virtually triples the clamping torque to a massive 1568 Nm.

With the ability to be used vertically or horizontally, depending on the application, the CNC260 makes a great solution to maximise the use of your machining centre.

The NIKKEN CNC260T motor is mounted to the top side of the rotary table. We also supply left, right and back side motor mounting - CNC260 & CNC60B.

The CNCZ260B comes with a high-speed motor as standard that can quickly deliver a substantial return on investment.

The rotary table can be supplied with a range of motors and controllers to meet your specific requirements - see the downloads section for more information or contact us to learn more.

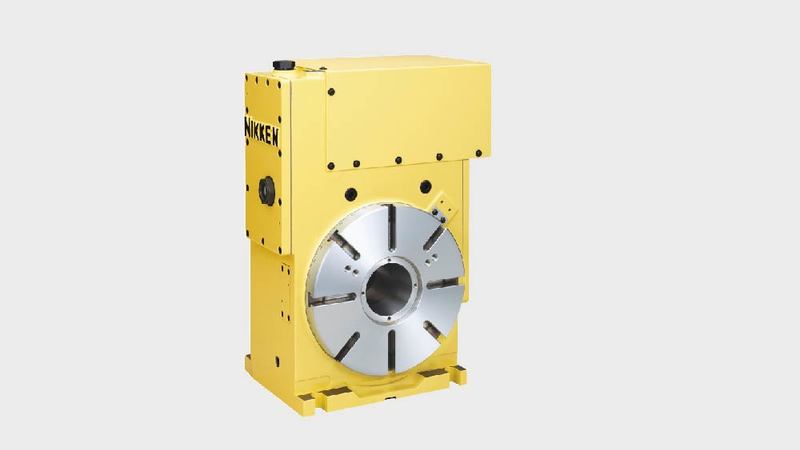

CNC(Z)260T Rotary Table

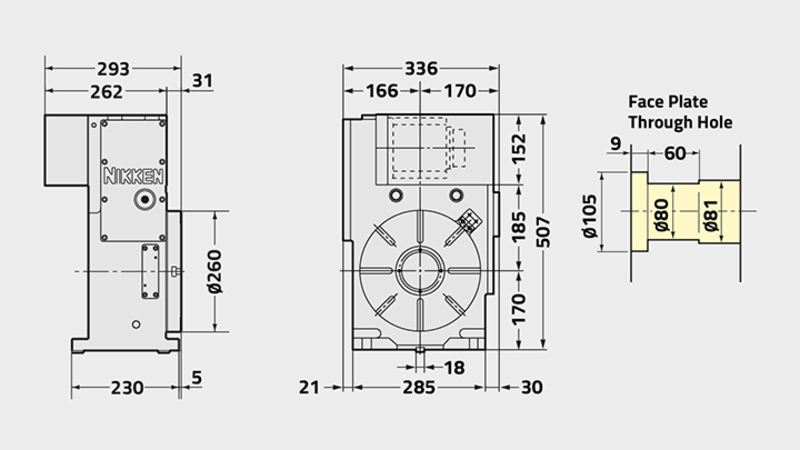

CNC(Z)260T Rotary Table Technical Diagram

Nikken Rotary Table Catalogue – 2019

(PDF - 62.5 MB)

CNC(Z)260T
Face Plate Diameter[Ømm] 260
Table Range/Type STANDARD
Standard Motor Orientation (Left Hand Option Available for Right Hand Tables) TOP MOUNT
Diameter of Spindle Hole [Ømm H7] 80
Number of Spindles x Pitch [mm] 1
Centre Height [mm] 170
Width of T-Slot [mm] 12
Clamping System AIR/HYD
Clamping Torque [Nm] 588/1568
Table Inertia at Motor Shaft [Kg m2 x 103] 1.5
Servo Motor [min1] αiF4·3000
Min. Increment [Degrees] 0.001
Rotation Speed [min1] 25.0 (50.0)
Total Reduction Ratio 1/120 (1/60)
Indexing Accuracy [sec] 20
Indexing Accuracy Ultra Precision [sec] N/A
Net Weight [Kg] 160
Max. Vertical Work Load on Table [Kg] 175
Max. Horizontal Work Load on Table [Kg] N/A
Max. Horizontal Thrust Load on the Table [N] 42480
Strength of Worm Wheel Without Brake (Against Dynamic Cutting Thrust) [FxL Nm] 1442
Max. Thrust Load on the Table [FxL Nm] 2320
Guideline of Max. Unbalancing Load (Vertical with Support) [Nm] 50
Max. Work Inertia [Kg m2] 3.2 (1.6)
Driving Torque [Nm] 192 (153)
