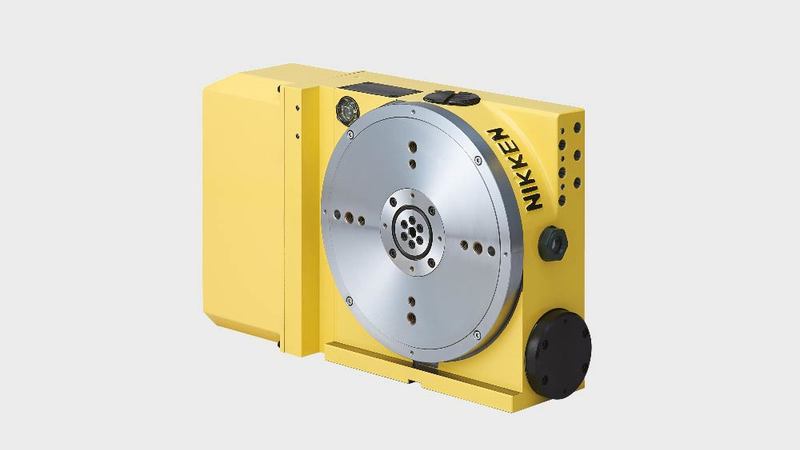

The NIKKEN CNC205 is an ultra-slim compact CNC Rotary Table designed for Trunnion Application.

With a body thickness of 98mmm, 54mm slimmer than previous models, the CNC205 delivers an outstanding clamping power of 380Nm to maximize machining space yet maintains high rigidity.

For machines with no hydraulic power the source, an air-hydro unit is provided as standard to provide powerful hydraulic supply functionality using air only.

An ultrathin support table is also available to further expand the machining area.

The CNCZ205 comes with a high-speed motor as standard that can quickly deliver a substantial return on investment.

The rotary table can be supplied with a range of motors and controllers to best meet your particular requirements - see the downloads section for more information or contact us for more information.

CNC(Z)205 Rotary Table Technical Diagram

Nikken Rotary Table Catalogue – 2019

(PDF - 62.5 MB)

	CNC(Z)205
Face Plate Diameter[Ømm]	200
Table Range/Type	COMPACT
Standard Motor Orientation (Left Hand Option Available for Right Hand Tables)	RIGHT
Diameter of Spindle Hole [Ømm H7]	30
Number of Spindles x Pitch [mm]	1
Centre Height [mm]	135
Width of T-Slot [mm]	N/A
Clamping System	AIR (HYD BOOST)
Clamping Torque [Nm]	380
Table Inertia at Motor Shaft [Kg m² x 10³]	0.15
Servo Motor [min¹]	αiF2·3000
Min. Increment [Degrees]	0.001
Rotation Speed [min¹]	33.3 (66.6)
Total Reduction Ratio	1/90 (1/45)
Indexing Accuracy [sec]	±20
Indexing Accuracy Ultra Precision [sec]	N/A
Net Weight [Kg]	45
Max. Vertical Work Load on Table [Kg]	100 (Supported)
Max. Horizontal Work Load on Table [Kg]	N/A
Max. Horizontal Thrust Load on the Table [N]	670
Strength of Worm Wheel Without Brake (Against Dynamic Cutting Thrust) [FxL Nm]	N/A
Max. Thrust Load on the Table [FxL Nm]	690
Guideline of Max. Unbalancing Load (Vertical with Support) [Nm]	30
Max. Work Inertia [Kg m²]	0.4
Driving Torque [Nm]	72
