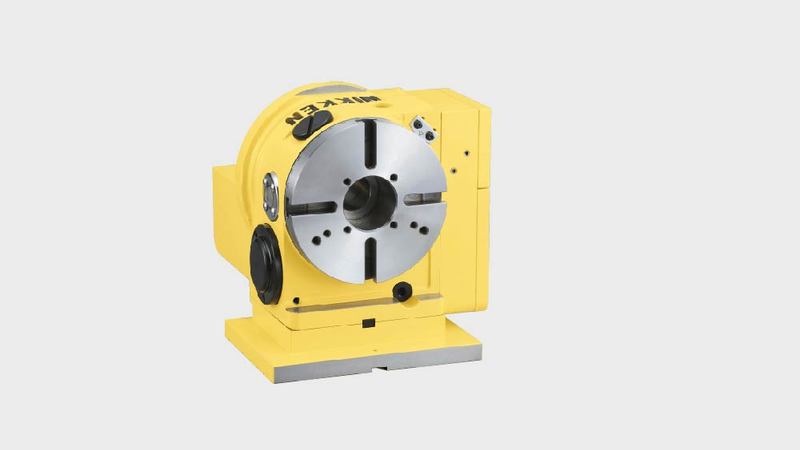

With the motor mounted to the back of the rotary table, the NIKKEN CNC180B compact rotary table makes a superb entry-level solution for machines that do not have ample space for the Y-Axis.

With pneumatic clamping, this rotary table is used by many on their small vertical machining centres to deliver fourth axis capabilities at an affordable price.

This versatile Rotary Table comes complete with a faceplate, is compatible with Alpha 21 controller and is available with left and right-hand motors.

The CNCZ180B comes with a high-speed motor as standard that can quickly deliver a substantial return on investment.

The rotary table can be supplied with a range of motors and controllers to meet your specific requirements - see the downloads section for more information or contact us to learn more.

CNC(Z)180B Rotary Table Technical Diagram

Nikken Rotary Table Catalogue – 2019

(PDF - 62.5 MB)

	CNC(Z)180B
Face Plate Diameter[Ømm]	180
Table Range/Type	COMPACT
Standard Motor Orientation (Left Hand Option Available for Right Hand Tables)	RIGHT
Diameter of Spindle Hole [Ømm H7]	60
Number of Spindles x Pitch [mm]	1
Centre Height [mm]	180
Width of T-Slot [mm]	12
Clamping System	AIR
Clamping Torque [Nm]	303
Table Inertia at Motor Shaft [Kg m² x 10³]	0.4
Servo Motor [min¹]	αiF2·3000
Min. Increment [Degrees]	0.001
Rotation Speed [min¹]	33.3 (66.6)
Total Reduction Ratio	1/90 (1/45)
Indexing Accuracy [sec]	±20
Indexing Accuracy Ultra Precision [sec]	N/A
Net Weight [Kg]	56
Max. Vertical Work Load on Table [Kg]	100
Max. Horizontal Work Load on Table [Kg]	N/A
Max. Horizontal Thrust Load on the Table [N]	18000
Strength of Worm Wheel Without Brake (Against Dynamic Cutting Thrust) [FxL Nm]	542
Max. Thrust Load on the Table [FxL Nm]	690
Guideline of Max. Unbalancing Load (Vertical with Support) [Nm]	30
Max. Work Inertia [Kg m²]	0.4
Driving Torque [Nm]	72 (54)

CNC(Z)180B

Nikken Rotary Table Catalogue – 2019
