CNC(Z)180
Rotary Table
The NIKKEN CNC180 compact rotary table is a superb entry-level solution. Despite its size, the CNC180 offers unrivalled high precision, high rigidity and durability.
With pneumatic clamping, this rotary table is used by many on their small vertical machining centres to deliver fourth axis capabilities at an affordable price.
This versatile Rotary Table comes complete with a faceplate, is compatible with Alpha 21 controller and is available with left and right-hand motors.
The CNCZ180 comes with a high-speed motor as standard that can quickly deliver a substantial return on investment.
The rotary table can be supplied with a range of motors and controllers to meet your specific requirements - see the downloads section for more information or contact us to learn more.
Nikken Rotary Table Catalogue – 2019
(PDF - 62.5 MB)

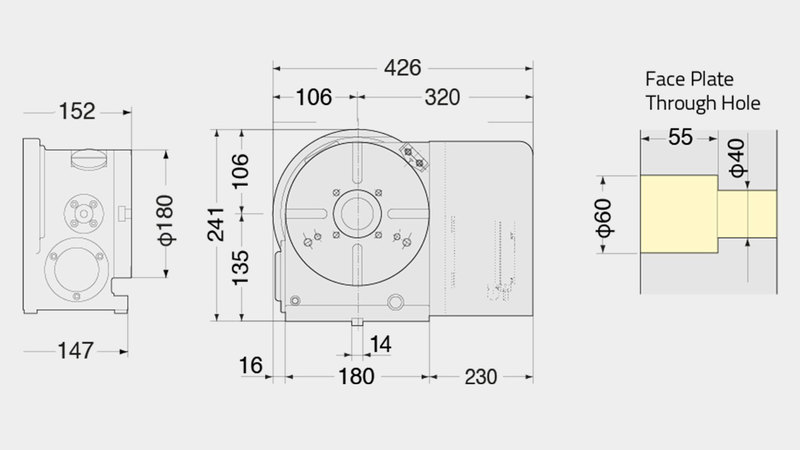

| CNC(Z)180 | |
|---|---|
| Face Plate Diameter[Ømm] | 180 |
| Table Range/Type | COMPACT |
| Standard Motor Orientation (Left Hand Option Available for Right Hand Tables) | RIGHT |
| Diameter of Spindle Hole [Ømm H7] | 60 |
| Number of Spindles x Pitch [mm] | 1 |
| Centre Height [mm] | 135 |
| Width of T-Slot [mm] | 12 |
| Clamping System | AIR |
| Clamping Torque [Nm] | 303 |
| Table Inertia at Motor Shaft [Kg m2 x 103] | 0.08 |
| Servo Motor [min1] | αiF2·3000 |
| Min. Increment [Degrees] | 0.001 |
| Rotation Speed [min1] | 33.3 (66.6) |
| Total Reduction Ratio | 1/90 (1/45) |
| Indexing Accuracy [sec] | ±20 |
| Indexing Accuracy Ultra Precision [sec] | N/A |
| Net Weight [Kg] | 45 |
| Max. Vertical Work Load on Table [Kg] | 100 |
| Max. Horizontal Work Load on Table [Kg] | 200 |
| Max. Horizontal Thrust Load on the Table [N] | 18000 |
| Strength of Worm Wheel Without Brake (Against Dynamic Cutting Thrust) [FxL Nm] | 542 |
| Max. Thrust Load on the Table [FxL Nm] | 690 |
| Guideline of Max. Unbalancing Load (Vertical with Support) [Nm] | 30 |
| Max. Work Inertia [Kg m2] | 0.4 (0.2) |
| Driving Torque [Nm] | 72 (54) |
