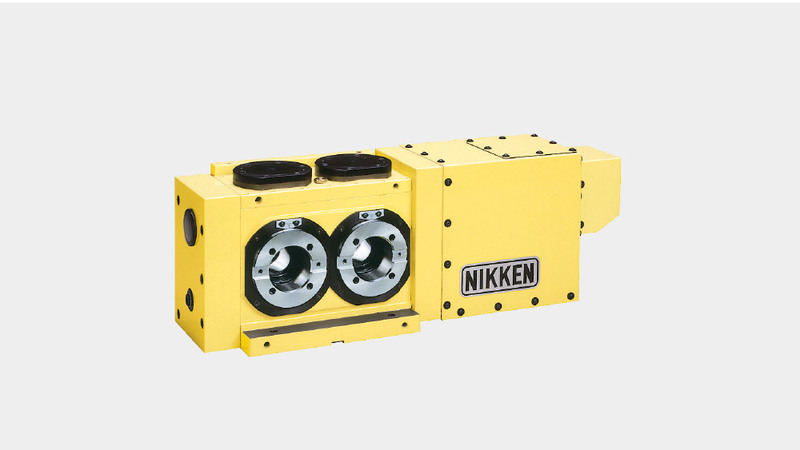

NIKKEN Multi-Spindle CNC Rotary Tables are a great solution to enhance capacity and process.

With the ability to multi-load parts, the CNC100-2W is ideal for manufacturing small items and mass-producing parts.

The inclusion of the multiple spindles for the construction of the CNC100-2W make absolutely no compromise to performance and, just like the rest of the NIKKEN CNC Rotary Table range, promises to enhance productivity while maintaining unrivalled high precision, high rigidity and durability.

The CNC100-2W is also available with 3 or 4 pots and a high-speed motor that can quickly deliver a substantial return on investment.

The rotary table can be supplied with a range of motors and controllers to meet your specific requirements - see the downloads section for more information or contact us to learn more.

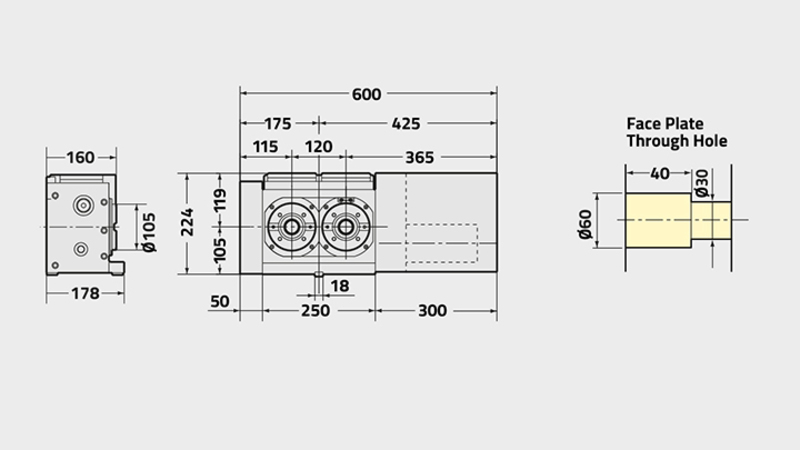

CNC(Z)100-2W Technical Diagram
Face Plate Diameter[Ømm] 105
Table Range/Type MULTI-SPINDLE
Standard Motor Orientation (Left Hand Option Available for Right Hand Tables) RIGHT
Diameter of Spindle Hole [Ømm H7] 60
Number of Spindles x Pitch [mm] 2 x 120
Centre Height [mm] 105
Width of T-Slot [mm] 16
Clamping System AIR
Clamping Torque [Nm] 147
Table Inertia at Motor Shaft [Kg m2 x 103] 0.13
Servo Motor [min1] αiF2·3000
Min. Increment [Degrees] 0.001
Rotation Speed [min1] 16.6 (66.6)
Total Reduction Ratio 1/180 (1/45)
Indexing Accuracy [sec] ±30
Indexing Accuracy Ultra Precision [sec] N/A
Net Weight [Kg] 70
Max. Vertical Work Load on Table [Kg] 15
Max. Horizontal Work Load on Table [Kg] 30
Max. Horizontal Thrust Load on the Table [N] 3920
Strength of Worm Wheel Without Brake (Against Dynamic Cutting Thrust) [FxL Nm] 275
Max. Thrust Load on the Table [FxL Nm] 98
Guideline of Max. Unbalancing Load (Vertical with Support) [Nm] N/A
Max. Work Inertia [Kg m2] 0.019 (0.07 Horizontal)
Driving Torque [Nm] 72
