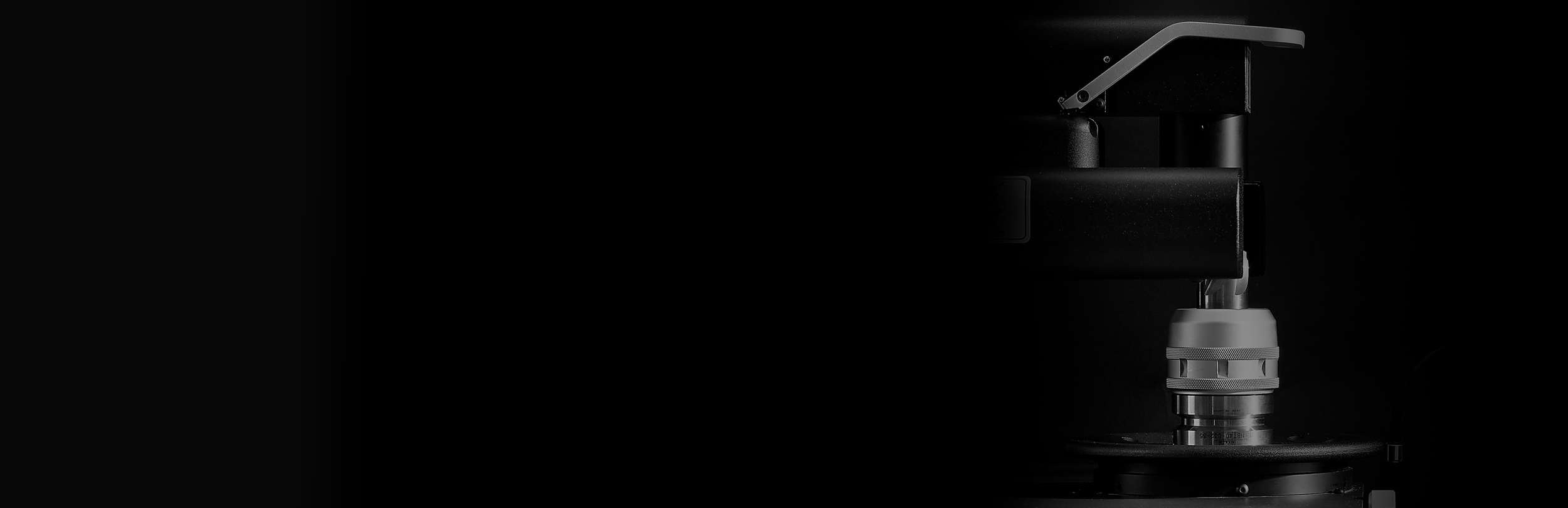

E46C Tool Presetter

The new E46C presetter series bring multiple advantages, significantly improving the production process. While the machine is carrying out a job, the operator, or the toolroom staff, can pre-set the tools for the next job.

The base and column are made of natural granite. For over 30 years we have been using granite for the base and the column: in fact, it allows our presetters to have a high degree of dimensional stability, guaranteeing precision and repeatability of measurements. The excellent thermal and vibration damping properties make granite an excellent material for the precision mechanical industry. The use of granite is a guarantee of precision but is not enough to have a superior level machine.

The new AS371 optical scales model allow for high and precise performance. The development of this essential component is given by forty years of experience in the field of measurement in the mechanical sector.

All our spindle holders are interchangeable and are built to have a high level of repeatability. Without the use of adapters, the measurement becomes even more precise, as we avoid introducing coupling errors between the different elements.

EVOLVED: THE NEW PRESETTING ERA IS UPON US

TECHNOLOGICAL: DEVELOPED TO OFFER A CUTTING-EDGE PRODUCT

USER FRIENDLY: EASY AND INTUITIVE USER INTERFACE

Furthermore, the E46C presetter series is equipped with the spindle holder identification system (SP-ID). The system allows the presetting machine to identify the spindle holder and suggests the correct machine origins, every time the spindle holder is changed.

E46C is equipped with a 21,5" vertical capacitive touch screen monitor, positioned vertically for better viewing of both data and measurement functions.

Smartphone-type usability has allowed us to develop software capable of scrolling pages from left to right and vice versa with a simple movement of the fingers on the screen, opening the submenu by pressing the icon, managing and customizing the spaces of the monitor according to your needs. Limits are made to be overcome!

E46C can be equipped with the new Automatic Tool Recognition system.

GENERAL FEATURES

• Measuring range: max diameter 400 mm (radius 200 mm); max height 600 mm
• Base and column in natural granite: max linearity error 8 µm/m
• Steel base with 3 fixed and 1 adjustable feet
• Linear guideways (2 X axis, 1 Z axis) with double recirculating ball bearings slides
• Pneumatic axis movement unlock
• Manual gross movement
• Manual fine adjustment
• ECN AS371 certified optical scales (resolution 1µm)
• Vertical TFT 21,5" Full HD Touch Screen Monitor
• Keyboard and mouse
• Label printer side support
• Spindles side support (1 for 2 spindles)
• Overall dimensions: L = 1179 mm, H = 1935 mm, D = 568 mm
• Net weight: ~ 230 kg
