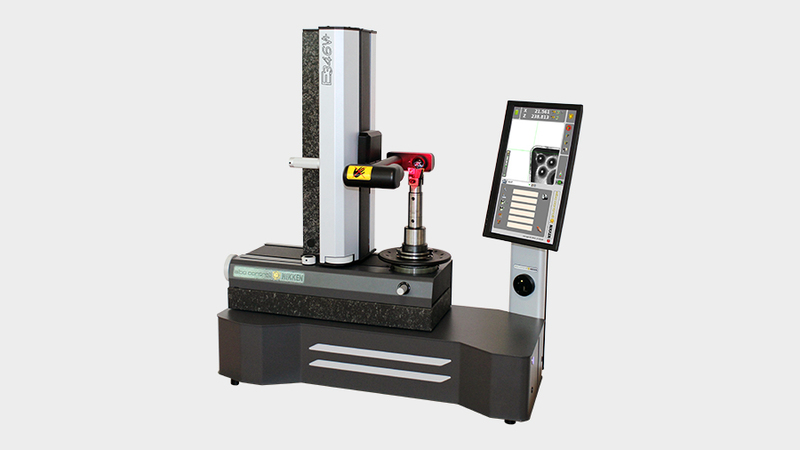

E346V+ Tool Presetter

The presetter is a perfect fit for direct use within a workshop to improve productivity and increase efficiency whilst also reducing costs. All of our E346B series presetting machines can massively benefit these two environments, minimising human error and increasing production capacity by measuring tools without downtime.

The use of natural granite as a key construction element allows our tool presetters to have a high degree of dimensional stability, guaranteeing accuracy and repeatability of measurements. When granite makes the difference!

We have in addition dedicated a lot of attention to the development of the spindle holders, a fundamental element for a successful measurement. Our spindle holders are all interchangeable, drastically reducing coupling error.

E346BV is equipped with the vacuum clamping system (VACUUM): the vacuum generated inside the interchangeable rotating spindle holder allows total adaptability to cater for various types of pull stud, i.e. without the use of adapters. Why not have the best?

The adoption of the 15,6" touch screen monitor on our presetters improves usability, efficiency and accuracy, helping to optimise the entire production process and making the presetting experience simple and intuitive.

The new graphical interface features a simple and organised layout, reducing the number of clicks required to complete tasks.Elements are arranged to be easily accessible, reducing learning time. Everything you need is here and included!

How important is it for a workshop to efficiently control the tool data flow? Implement your presetter with our tool management systems (ATR -TTS -TID), increasing efficiency, accuracy and traceability within your production processes.

TECHNICAL FEATURES:

GENERAL FEATURES

• Measuring range: max diameter 360 mm (radius 180 mm); max height 460 mm
• Base and column in natural granite: max linearity error 8 µm/m
• Steel base with 3 fixed and 1 adjustable feet
• Linear guideways (2 X axis, 1 Z axis) with double recirculating ball bearings slides
• Manual gross movement
• Manual fine adjustment
• ECN AS371 certified optical scales (resolution 1µm)
• Vertical TFT 15,6" Touch Screen Monitor
• Overall dimensions: L = 958 mm, H = 974 mm, D = 441 mm
• Net weight: ~ 105 kg

SPINDLE FEATURES

• Interchangeable spindle (ISO,BT,CAT, HSK, Polygonal taper, etc.)
• Manual spindle brake
• Tool holders clamping with VACUUM system (DIN69872, ISO7388, MAS403)
• Manual tool holder clamping (HSK, Polygonal taper)

CAMERA SYSTEM FEATURES

• Bi-telecentric optical lenses
• Elbo Controlli NIKKEN camera system measuring range (mm) = 7,6 x 7,2 mm
• Monochromatic C-MOS sensor USB 3.0 Super speed connection
• Elbo Controlli NIKKEN camera system resolution = 1 µm
• Elbo Controlli NIKKEN camera system magnification = 25x
• Analogic and digital camera view
• Digital zoom = 4x
• Tool inspection function
• Resizeable camera area

SOFTWARE AND MEASURING FUNCTIONS

• Embedded ECN operating system Linux based
• ECN machine software B version (blue screen)
• Number of machine origins / number of tool sets = ∞ / ∞
• Multi-origin function for multitasking machines
• Manual measure function with fixed reticle
• Autotargeting measure function
• Autotargeting measure function with dimension freeze
• Collimation indicators for fixed reticle measure
• On-screen automatic measure of tool corner radius & theoretical centre point
• On-screen automatic measure of tool corner angle & theoretical intersection
• Chamfer measuring function
• Adjustable Area of Interest (AOI)
• Software for manual tool presetting and geometry check

GRAPHIC FUNCTIONS

• Adjustable reticles (axis and circles)
• Profile image capture function
• Automatic geometry (1 geometric entity)
• Geometry by points
• Camera image capture
• DXF files import of the tool profile

CONNECTION AND INTEGRATION FUNCTIONS

• USB ports (4)
• LAN connection
• Standard post processor
