Providing incredible accuracy and a higher thrust load than standard, the NSVX400 is one of our most powerful Rotary Tables yet.

Designed for use within the oil and gas-related industries, the NSVX400 has an unparalleled hydraulic clamping system, making it ideal for deep cutting highly rigid material.

Also available with a top side-mounted motor, the NSVX400T maximises clearance, allowing for easy access.

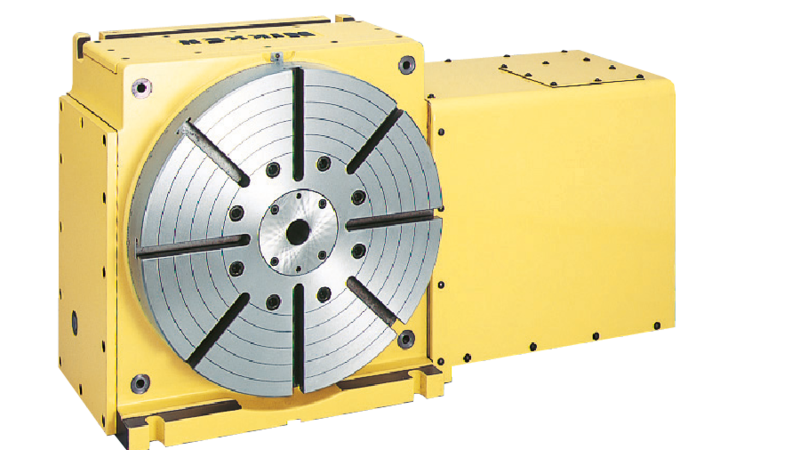

NSVX400 Rotary Table
NSVX400 Rotary Table Technical Diagram

No Deposit & 12 Months Interest Free

No Deposit, 12 month Interest free period may available for your purchase via the UK Governments Coronavirus Business Interruption Loan Scheme (CBILS) or the Bounce Back Loan Scheme (BBLS). Both Government backed schemes are there to support businesses cash flow when making asset purchases, these schemes fund 100% of the Net purchase price (no deposit) with the first 12 months interest and fee free. Further information is available on the www.gov.uk website or feel free to contact us to discuss with our appointed accredited lender.

NSVX400
Face Plate Diameter[Ømm] 400
Table Range/Type HIRTH COUPLING
Standard Motor Orientation (Left Hand Option Available for Right Hand Tables) RIGHT
Diameter of Spindle Hole [Ømm H7] 80
Number of Spindles x Pitch [mm] 1
Centre Height [mm] 240
Centre Height [mm] 14
Clamping System HYD
Clamping Torque [Nm] 5880
Table Inertia at Motor Shaft [Kg m2 x 103] 2.9
Servo Motor [min1] αiF12·2000
Min. Increment [Degrees] 1/0.001
Rotation Speed [min1] 22.2
Total Reduction Ratio 1/90
Indexing Accuracy [sec] ±2
Indexing Accuracy Ultra Precision [sec] N/A
Net Weight [Kg] 325
Max. Vertical Work Load on Table [Kg] 250
Max. Horizontal Work Load on Table [Kg] 500
Max. Horizontal Thrust Load on the Table [N] 58800
Strength of Worm Wheel Without Brake (Against Dynamic Cutting Thrust) [FxL Nm] 5880
Max. Thrust Load on the Table [FxL Nm] 3920
Guideline of Max. Unbalancing Load (Vertical with Support) [Nm] 100
Max. Work Inertia [Kg m2] 6.4
Driving Torque [Nm] 432
