The NIKKEN CNC302 heavy-duty rotary table is a great solution for medium-sized machining centres.

With standard motors mounted to on the body side of the table, the CNC302 can be used both vertically or horizontally to maximise the use of your machining centre.

The table can be installed with a standard air brake or can be equipped with a hydraulic braking system which virtually triples the clamping torque to a massive 1568 Nm.

The CNCZ302 is also available with a high-speed motor that can quickly deliver a substantial return on investment.

The rotary table can be supplied with a range of motors and controllers to meet your specific requirements - see the downloads section for more information or contact us to learn more.

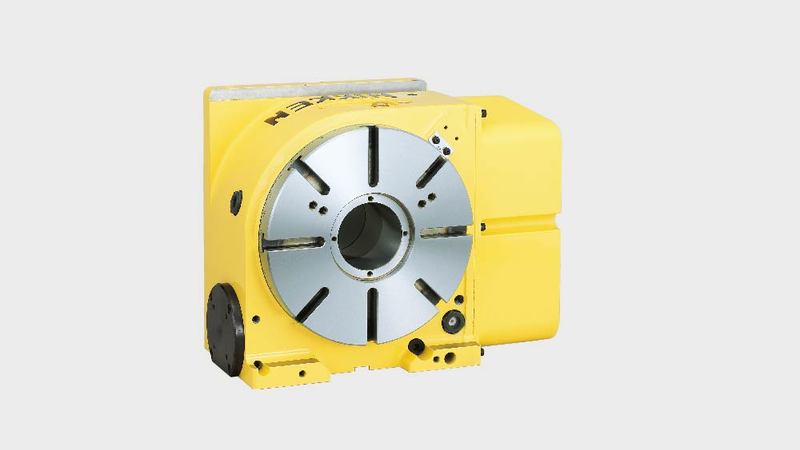

CNC(Z)302 Rotary Table
CNC(Z)302 Rotary Table Technical Diagram
Face Plate Diameter[Ømm] 300
Table Range/Type STANDARD
Standard Motor Orientation (Left Hand Option Available for Right Hand Tables) RIGHT
Diameter of Spindle Hole [Ømm H7] 80
Number of Spindles x Pitch [mm] 1
Centre Height [mm] 170
Width of T-Slot [mm] 12
Clamping System AIR/HYD
Clamping Torque [Nm] 588/1568
Table Inertia at Motor Shaft [Kg m2 x 103] 0.33
Servo Motor [min1] αiF4·3000
Min. Increment [Degrees] 0.001
Rotation Speed [min1] 25.0 (50.0)
Total Reduction Ratio 1/120 (1/60)
Indexing Accuracy [sec] 20
Indexing Accuracy Ultra Precision [sec] N/A
Net Weight [Kg] 120
Max. Vertical Work Load on Table [Kg] 175
Max. Horizontal Work Load on Table [Kg] 350
Max. Horizontal Thrust Load on the Table [N] 42480
Strength of Worm Wheel Without Brake (Against Dynamic Cutting Thrust) [FxL Nm] 1442
Max. Thrust Load on the Table [FxL Nm] 2320
Guideline of Max. Unbalancing Load (Vertical with Support) [Nm] 50
Max. Work Inertia [Kg m2] 3.2 (1.6)
Driving Torque [Nm] 192 (153)
