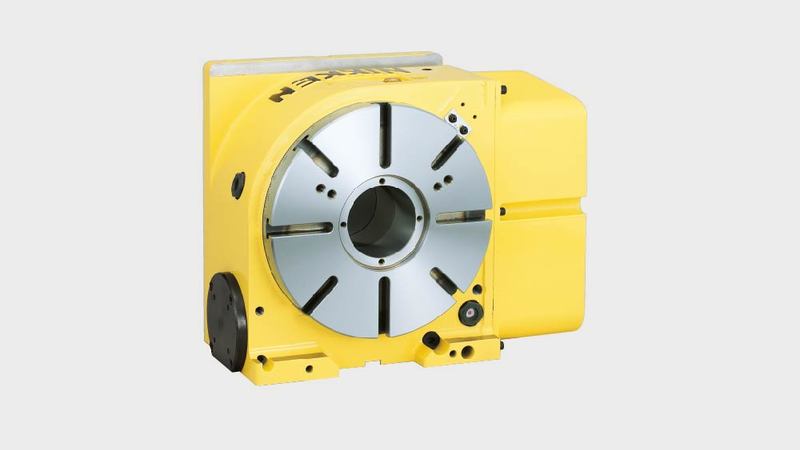

The CNC260 is the most versatile Rotary Table ever produced by NIKKEN. This table is commonly used on a wide range of vertical machining centres to provide 4th axis capabilities at minimal costs.
The table can be installed with a standard air brake or can be equipped with a hydraulic braking system which virtually triples the clamping torque to a massive 1568 Nm.
With the ability to be used vertically or horizontally, depending on the application, the CNC260 makes a great solution to maximise the use of your machining centre.
The CNCZ260 comes with a high-speed motor as standard that can quickly deliver a substantial return on investment.
The rotary table can be supplied with a range of motors and controllers to meet your specific requirements - see the downloads section for more information or contact us to learn more.
Available with NIKKEN Rental Scheme

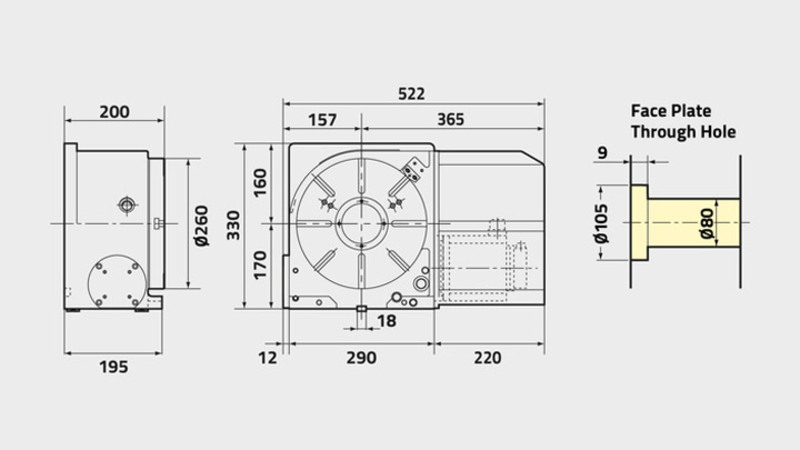

|Face Plate Diameter[Ømm]||260|
|Standard Motor Orientation (Left Hand Option Available for Right Hand Tables)||RIGHT|
|Diameter of Spindle Hole [Ømm H7]||80|
|Number of Spindles x Pitch [mm]||1|
|Centre Height [mm]||170|
|Width of T-Slot [mm]||12|
|Clamping Torque [Nm]||588/1568|
|Table Inertia at Motor Shaft [Kg m2 x 103]||0.33|
|Servo Motor [min1]||αiF4·3000|
|Min. Increment [Degrees]||0.001|
|Rotation Speed [min1]||25.0 (50.0)|
|Total Reduction Ratio||1/120 (1/60)|
|Indexing Accuracy [sec]||20|
|Indexing Accuracy Ultra Precision [sec]||N/A|
|Net Weight [Kg]||115|
|Max. Vertical Work Load on Table [Kg]||175|
|Max. Horizontal Work Load on Table [Kg]||350|
|Max. Horizontal Thrust Load on the Table [N]||42480|
|Strength of Worm Wheel Without Brake (Against Dynamic Cutting Thrust) [FxL Nm]||1442|
|Max. Thrust Load on the Table [FxL Nm]||2320|
|Guideline of Max. Unbalancing Load (Vertical with Support) [Nm]||50|
|Max. Work Inertia [Kg m2]||3.2 (1.6)|
|Driving Torque [Nm]||192 (153)|
